Description
Description
Manufacturer
Belden
Model #

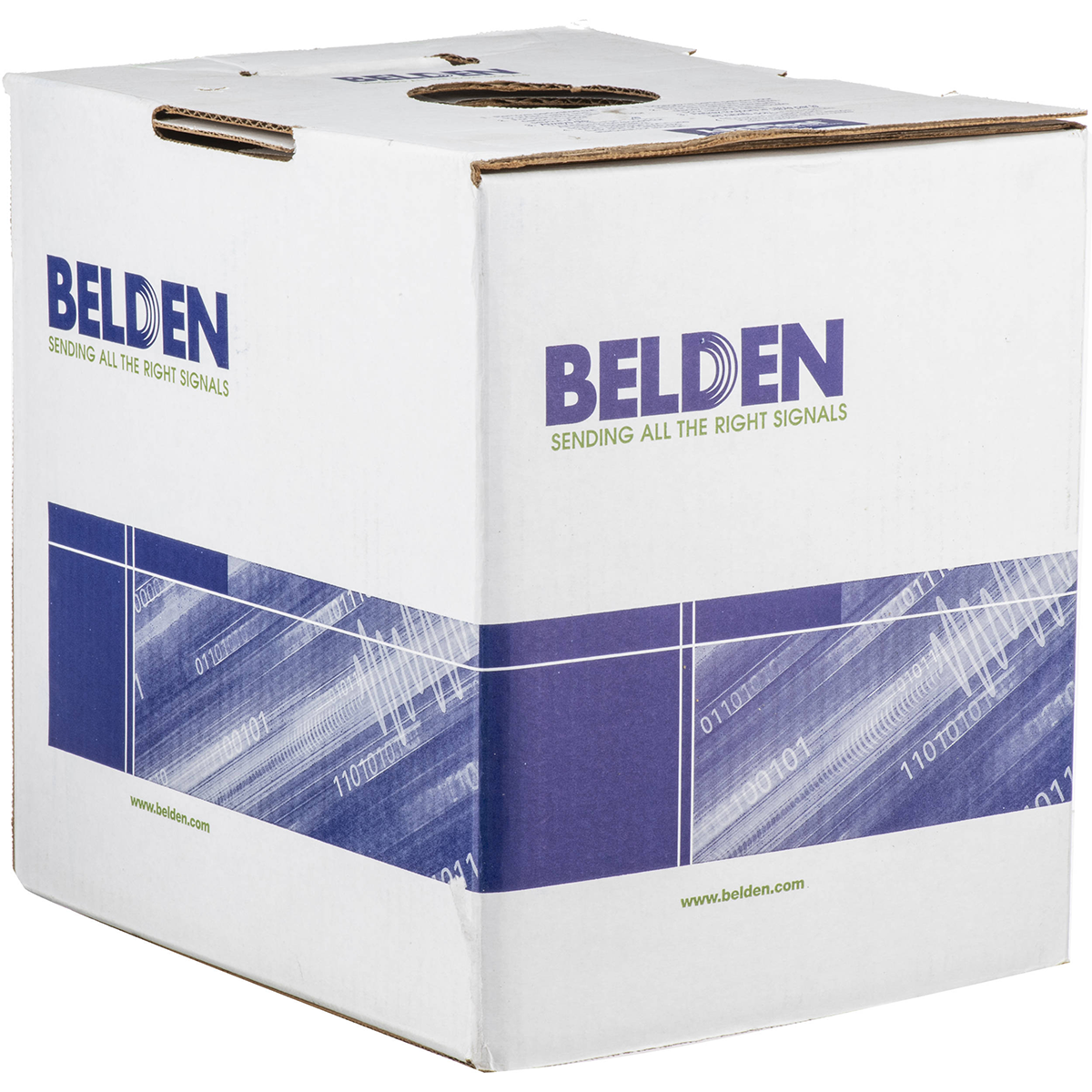

RG58/U Mil Spec Cable (8219)
Product Description
50 Ohm Coaxial Cable (Flexible Cable) 1000 Foot Reel
Cable Type
3/16" Braided
Shield %
95% Braid
Impedance
50 Ohms
VOP.
73%
Center Conductor
0.037" Stranded (Flexible Cable)
Insulation
Polyethylene
Other Spec
Mil Spec JAN-C-17A
Nom. core O.D. (in.)
0.116"
Nom. O.D. (in.)
0.195"
Losses Shown are based on 100 Foot Length
loss 50 MHz
3.1 db
loss 100 MHz
4.5 db
loss 400 MHz
10.0 db
loss 900 MHz
16.6 db
loss 1000 MHz
17.9 db
Nom. Capacitance (pF/ft)
28.5
Sold By
1000 Foot Reel
Warranty
1 Year
