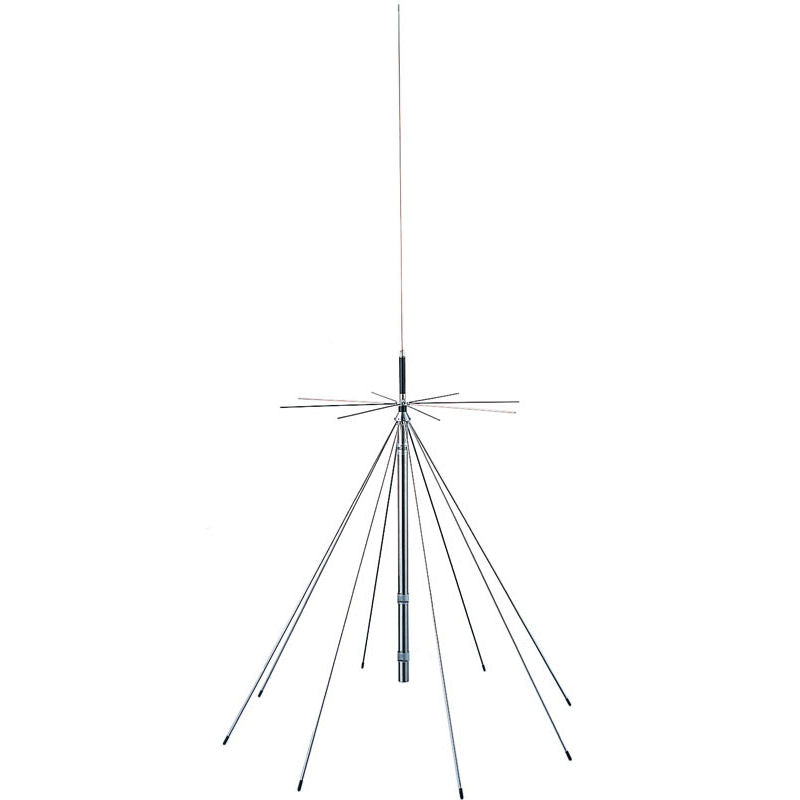

D3000N Super Discone Antenna
The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Special Features:
- Ultra-wideband design 25 to 3000 MHz receive, 50-1200 MHz transmit (6m tunable for transmit)
- Compact and lightweight design enables antenna to be installed on balcony railing at an apartment or condominium
- Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm amateur bands
- Excellent "shop" antenna for testing various transmitters on a single coax
- Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
Specifications:
Bands:
25-3000 MHz
Gain (dBi):
2 (nominal)
Max Power Rating:
144 MHz up: 200 watts, 6m: 20 watts FM, 50 watts PEP
Height:
67"
Connector
N Female
