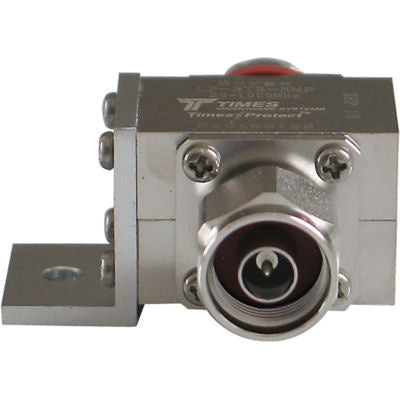

Times Microwave LP-BTR-NMP

Bulkhead or Flange mount by rotating bracket 90 degrees in any direction. Bulkhead mounting coaxial protector attaches through a maximum 1/4" thickness panel. Flange mount to any flat surface. DC blocked to minimize throughput energy. Turn-on voltage 600V ± 20%. Turn-on time 2.5nS for 2kV/nS voltage rise time. Will withstand multiple strikes at 10kA (8x20µS wave-form). Insertion loss is <0.1 dB, VSWR <1.1:1, Return loss <-26dB. Protector cannot be used where there is voltage for tower mounted electronics on the center conductor. Brass body with white bronze plating.

20-1000 MHz

200 uJ

N Male

N Female

20-220@375W, 220-700@125W, 700-1000@50W

10 Years
