Description
Description
Input Voltage (VAC)
115
Output Voltage (VDC)
28
Amperage (Intermittent)
25
Amperage (Cont.)
18
Voltage/Amperage Meter
Separate
Ripple Voltage
5 mv
Fold-Back Protection
Yes
Crowbar Prot.
Yes
Power Cord
3 conductor
Height
5.25
Width
19
Length
12.5
Rack Size
19"
Product Narrative

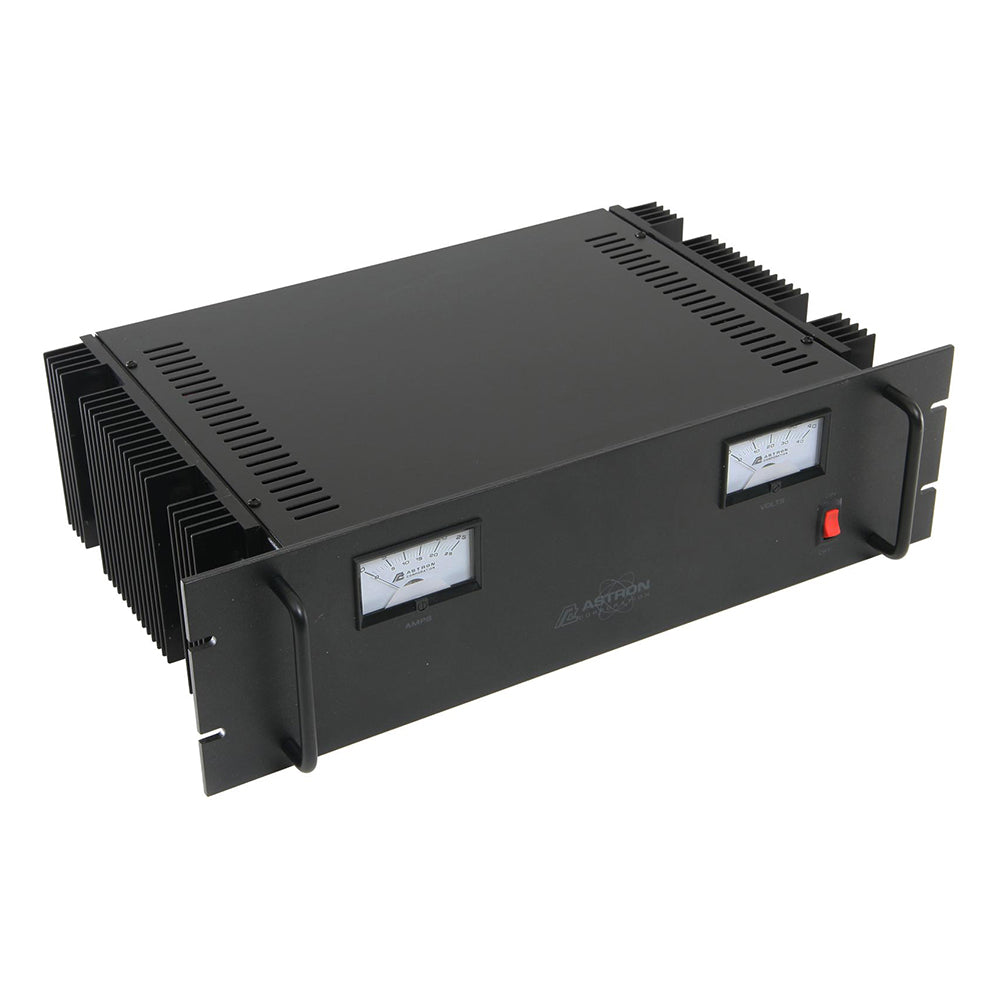

Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse. Less than 5 mV ripple peak to peak (full load and low line). Includes separate volt and amp meters.
Mfg. Warranty
1 Year
