MPN: SMD-W-3C3C3C-WHT-12
BRAND: Mobile Mark, Inc.
PRODUCT TYPE: Mobile Antenna
SKU: 6610

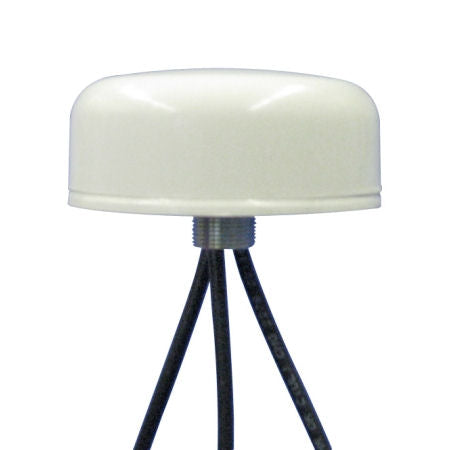

Mobile Mark SMD-W-3C3C3C-WHT-180

2400-2500/4900-6000 MHz MIMO antenna. Gain (dB) 4 dBi, Maximum Power 20(Watts), Whip Length 1.5"H x 3.5" dia. 5/8" Hole bolt mount, 15' RF195 Cable

$199⁹⁵

Shipping calculated at checkout.

Description

Product Narrative

Surface mount MIMO antenna installs to surfaces up to 1/4" thick. Requires a 5/8'" hole. Access to the underside of the body surface is required to complete the installation. There are 3 cables and each cable covers the entire frequency range: 2.4-2.5 GHz and 4.9-6 GHz.

Frequency (MHz)

2400-2500/4900-6000

Gain (dB)

4 dBi

Maximum Power (Watts)

20

Whip Length (In.)

1.5"H x 3.5" dia.

Whip Material

ASA Plastic

Color

White

Mount Type

5/8" Hole bolt mount

Cable Type

RF195

Cable Length

15'

Connector

Choose Optional Connector Installed Above

Warranty

2 Years
