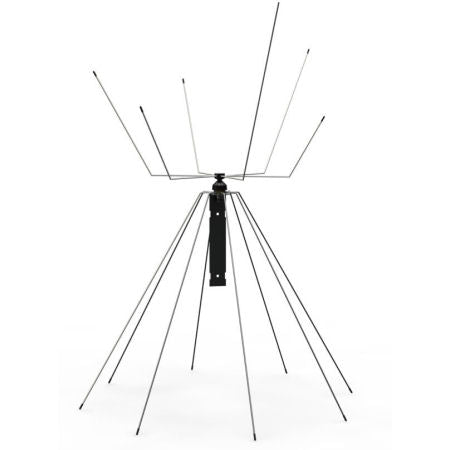

MP Antenna 08-ANT-0861

MP Antenna

MultiPolarized Receiving Antenna 25-6000MHz Designed for HAM, Scanner and Two-Way Government/Commercial communications, the MultiPolarized Super-M Ultra Base Station antenna covers the frequency range from 25MHz to 6GHz (88MHz – 6GHz transmit) providing unequaled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. The Super-M Ultra Base Station antenna is the gold level standard of two way communication incorporating Multi-Polarization for ultimate signal stability and is the widest bandwidth antenna on the market. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and flutter.

FEATURES

• Multi-Polarized
• Obstruction Penetrating TX/RX
• Enhanced Connectivity & Throughput
• Built In Spatial Diversity
• Ultra Wide Band
• Omnidirectional
• RoHS Compliant
• Mast Mount Hardware Included

APPLICATIONS

• Commerical (Truck, Taxi, Airport)
• Public Safety Communications
• Military (All Armed Forces)
• Maritime
• HAM Radio
• Scanner

25MHz to 6GHz (88MHz – 6GHz transmit)

3 dBi

200 Watts Input < 512MHz, 100 Watts Input > 512MHz

36"

2 lbs

N Female

1 Year
