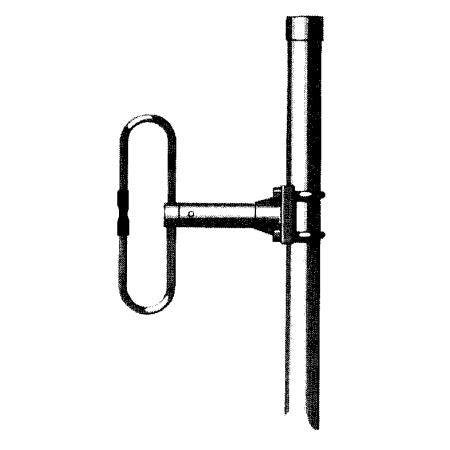

Sinclair Technologies SD310-HF2P4SNM
Regular price
$59995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Product Description
450-512 MHz 2dB Dipole Antenna
Narrative
Single dipole antenna covers the entire 406-512 MHz range. Well suited for multicoupled systems. Cable harness is inside the mast.1/4 wave from mast spacing.
General Frequency (MHz)
406-512
Gain (dB)
2
Maximum Input Power (Watts)
300
Bandwidth >1.5 VSWR
62
Horizontal Beamwidth (Deg)
210
Lightning Protection
DC Ground
Direct Termination
None
Flexible Extension
Jumper w/ 7/16 DIN Female
Overall Length
210"
Specific Frequency (MHz)
450-512
Support Pipe Dia.
1.9"
Vertical Beamwidth (Deg)
84 Deg.
Lateral Thrust @ RWV (lb)
21 Lbs.
Rated Wind Velocity (MPH)
270 MPH
Weight (lb)
6.5 Lbs.
Mount Hdw. Incl.
ORDER CLAMPS SEP.
Mfg. Warranty
2 Years
