Laird TE Connectivity Y4303
Regular price
$19995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
TE Connectivity
Narrative

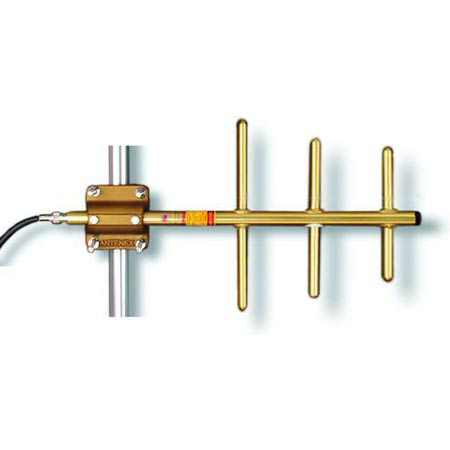

7.1 dB gain 3 element gold anodized yagi antenna. Solid elements are welded to boom for high durability.
Product Description
430-450MHz 7.1dB 3 Element Yagi Antenna
Bandwidth >1.5 VSWR
20
Gain (dB)
7.1
Frequency (MHz)
430-450MHz
Front to Back Ratio (dB)
17
Horizontal Beamwidth (Deg)
72 Deg.
Bend Moment @ RWV (ft-lb)
5.9 Ft. Lbs.
Direct Termination
N Female
Maximum Power Input (Watts)
300
Lightning Protection
DC Ground
Flexible Extension
None
Overall Length
1.9'
Support Pipe Dia.
1-5/8"
Vertical Beamwidth (Deg)
57 Deg.
Lateral Thrust @ RWV (lb)
6.1 Lbs.
Weight (lb)
2
Mount Hdw. Incl.
Clamp set
Wind Load (sq-ft)
0.15
Rated Wind Velocity (RWV, MPH)
100
Warranty
5 Year
