Product Description

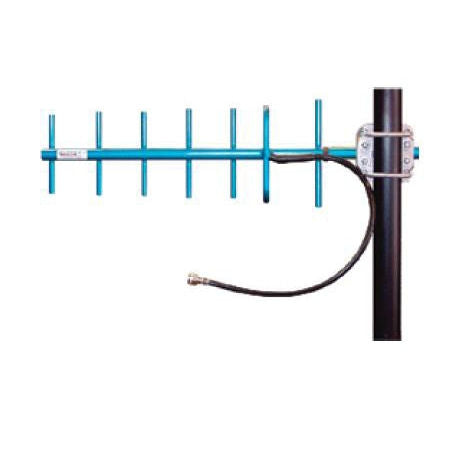

745-806 MHz 10dBd 7 Element Yagi Antenna
Type
Yagi
Narrative
Elements and boom are manufactured from aircraft quality 6061-T6 aluminum for optimum strength. Antenna is anodized for corrosion.
Bandwidth @ Rated VSWR (MHz)
61
Gain (dBd)
10
General Frequency (MHz)
745-806
Downtilt (Deg.)
None
Gain (dBi)
12.1
Connector Placement
End of Jumper
Front to Back Ratio (dB)
20
Horizontal Beamwidth (Deg)
56
Connector (direct)
N Female
Polarization
Vertical or Horizontal
Jumper Included
2 Ft. (RG213)
Maximum Power Input (Watts)
200
Specific Frequency (MHz)
745-806
Vertical Beamwidth (Deg)
47
Lateral Thrust @ RWV (lb)
7
Size (L x W x H)
26" x 7.5"
VSWR
<1.5:1
Weight (lb)
2.2
Mount Hdw. Incl.
BWC1001
Wind Load (sq-ft)
0.28
Rated Wind Velocity (RWV, MPH)
150
Mfg. Warranty
5 Years
