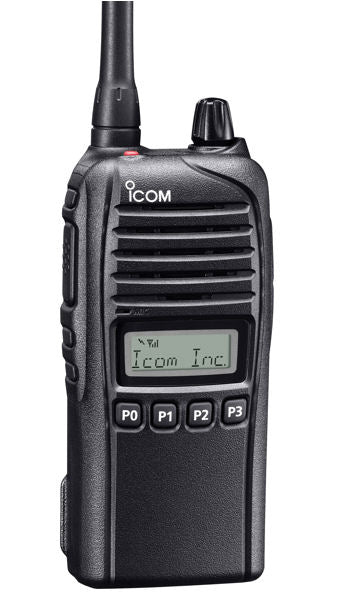

IDAS™ Multi-site Trunking Radio with Superior Waterproof Protection
IDAS™ digital mode operation
The F3230D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.
IP67 waterproof and dust-tight protection
The F3230D series provides outstanding protection against water and dust equivalent to IP67. The F3230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.
Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
* Typical with internal speaker
Channel announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.
8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.
Roaming scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
IDAS™ digital mode features
- In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
- PTT ID and ANI
- Status
- Radio check (RX)
- Call alert
- Emergency
- ATB (All Trunks Busy) ring back
- SDM (Short Data Message)
- RAN (Radio Access Number)
- Stun/kill/revive (RX)
- Remote monitor (RX)
- Digital voice scrambler
*TX: Transmit, RX: Receive
Other features
- CTCSS/DTCS encode/decoder
- Up to 128 memory channel with 8 zones
- Optional HM-HMHD717WP, waterproof speaker-mic
- Low battery alert
- Voting scan
- Talk around function
- Surveillance function
- 2-step power save
- Time out timer
- Lone worker function
- Forced narrow function *Analog mode only
