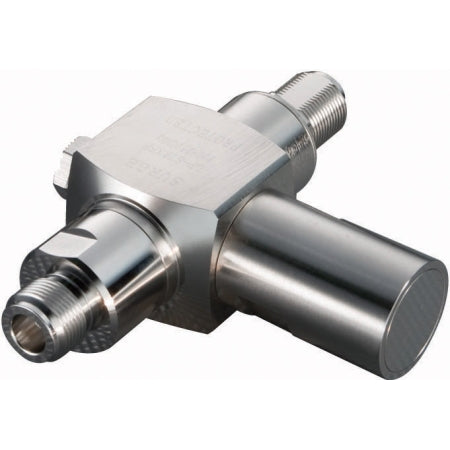

Times Microwave LP-STR-NFF

TIMES MICROWAVE .800 - 2.5 GHz STRN micro filter arres for bulkhead mounting Max. surge 50kA. 500 W. DC blocked. N/F on antenna port, N/F on equipment port.. All mechanical construction multi-strike filter with no gas tube. Bulkhead mounting coaxial protector attaches through a maximum 1/4" thickness panel. DC blocked to minimize throughput energy. Residual pulse voltage is <1 Volt (4kV/2kA, 1.2x50/8x20S wave-form); can withstand a 50kA maximum surge current. Insertion loss <0.1 dB, VSWR <1.15:1, return loss <-26 dB, with PIM <-160dBc. Protector cannot be used where there is voltage for tower mounted electronics on the center conductor. Brass body with white bronze plating.

800 MHz - 2.5 GHz

500

0.8 - 2.5 @ 500W

General Coverage Bulkhead Mount

less 1nJ @ 3kA

N Female

N Female



10 yrs
