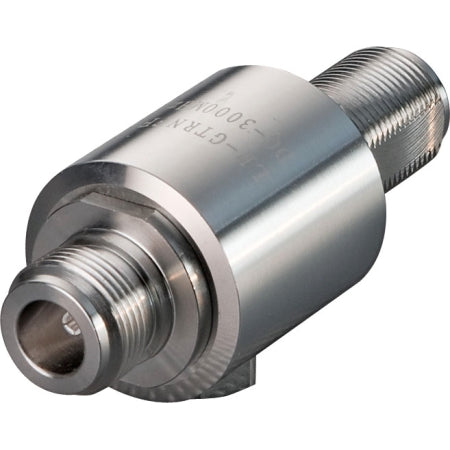

Times Microwave LP-GTR-NFF

All mechanical bi-directional construction multi-strike protector with replaceable gas capsule. Bulkhead mounting coaxial protector attaches through a maximum 1/4 inch thickness panel. Supplied with flange mount adapter. Will withstand multiple strikes at 20kA (8x20S wave-form). Insertion loss is <0.25 dB, VSWR <1.15:1, return loss <-26dB. Protector will pass DC on the center conductor for powering tower mounted electronics. Brass body with white bronze plating. Average power ratings are determined by gas tube capsule turn-on voltage.

DC - 3.0 GHz

50W @ 10 MHz, 47W @ 150 MHz, 40W @ 450 MHz, 33W @ 800 MHz, 12W @ PCS, 10W @ 2.4 GHz. (with 90V gas capsule)

DC to 3.0 GHZ gas tube lightning arrestor. Passes up to +/- 90 VDC, 20A max. Bi-directional. Bulkhead mount. N/F on both sides.

General Coverage Bulkhead Mount

N Female

N Female

2 Years
