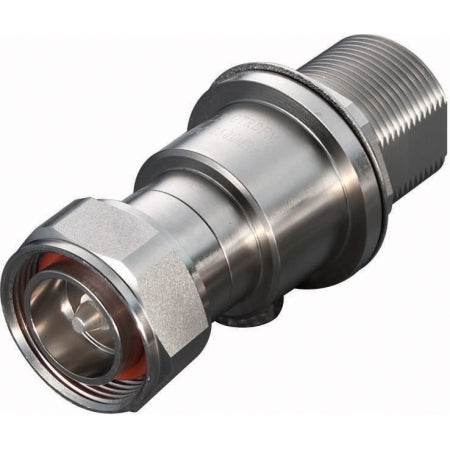

Times Microwave LP-GTR-DFM

All mechanical bi-directional construction multi-strike protector with replaceable gas capsule. Bulkhead mounting coaxial protector attaches through a maximum 1/4 inch thickness panel. Supplied with flange mount adapter. Will withstand multiple strikes at 20kA (8x20S wave-form). Insertion loss is <0.25 dB, VSWR <1.15:1, return loss <-26dB. Protector will pass DC on the center conductor for powering tower mounted electronics. Brass body with white bronze plating. Average power ratings are determined by gas tube capsule turn-on voltage.

DC - 2.5 GHz

50W @ 10 MHz, 47W @ 150 MHz, 40W @ 450 MHz, 33W @ 800 MHz, 12W @ PCS, 10W @ 2.4 GHz (with 90V gas capsule)

Straight Gastube w/alum body, DC to 2.5 GHz, DIN-F/surge,DIN-M/protector conn, Bulkhead mount.

General Coverage Bulkhead Mount

DIN Female

DIN Male

2 Years
