Description
Description

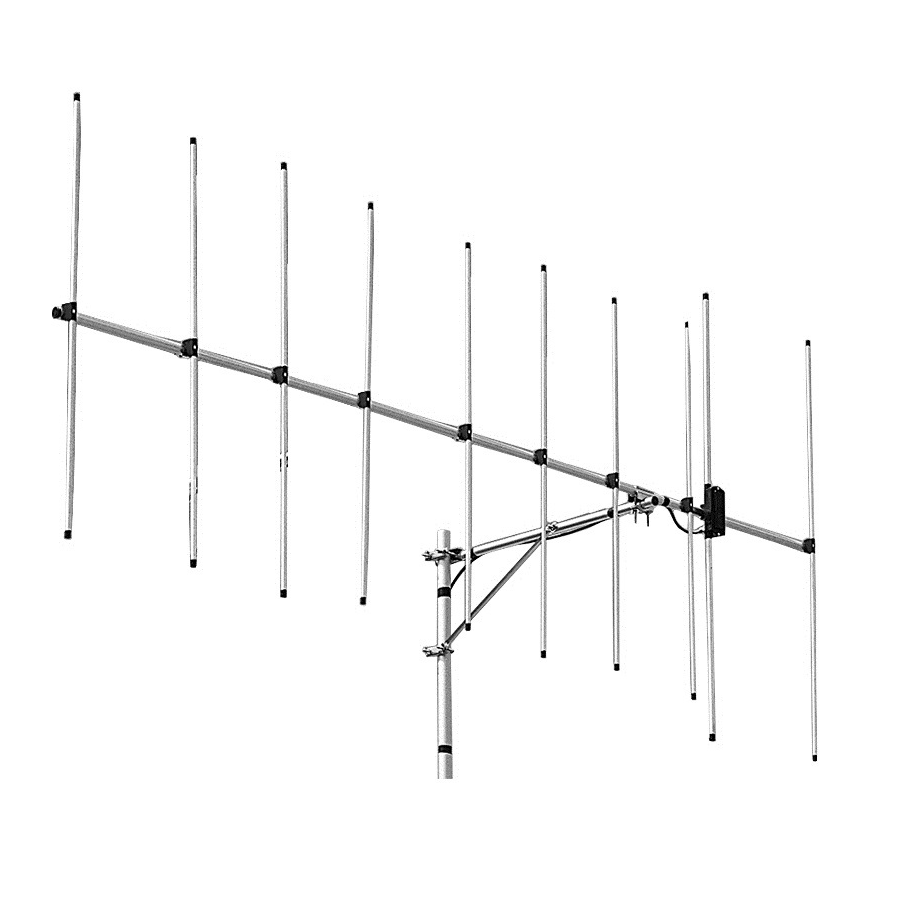

The A144S10 is shown mounted on a side mount bracket (KB144R) Not Included
Special Features:
- Super High Gain
- Easy Assembly
- Great for base or portable use.
- Quality Construction
- Factory adjusted – no tuning required.
Specifications:
Power Rating:
50 watts
Frequency:
144-148 MHz
Band:
2m Yagi (10 element)
Connector:
UHF Female (SO-239)
Gain:
11.6 dBi
Weight:
2.4 lbs.
Dimensions:
7' x 3' 6" x 6' 11"
Max Wind Resistance:
80 MPH
Remarks: Center element insulated from ground.
