MPN: TRIM-LCF114-D01-A
BRAND: RFS
PRODUCT TYPE: Wire/Cable Hand Tool
SKU: 7414

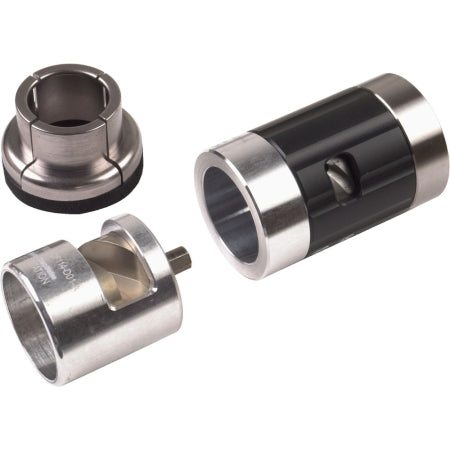

RFS TRIM-LCF114-D01-A

Name: RFS TRIM-LCF114-D01-A
Brand: RFS
SKU: 7414
Price: 1799.95 USD
Availability: InStock

Preparation Tools for 1-1/4" Standard Cable prepares cable for connector attachment. Manual and Automated tools help the installer prepare the cable for Connectorization. It can be used for CELLFLEX LCFS114-50 and UCF114-50 foam dielectric cables.

$1,799⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

377202 TRIM LCF114 D01 A 486161

Description

RFS Automated trimming tool. Special trimming tool makes the OMNI FIT Premium D01 connector attachment easier. No further tools are required to prepare the cable for the connector attachment. This is due to the unique design of the trimming tool, which combines all necessary functions in one compact tool. It can be used for CELLFLEX LCFS114-50 and UCF114-50 foam dielectric cables.

Narrative

Preparation Tools for 1-1/4" Standard Cable prepares cable for connector attachment. Manual and Automated tools help the installer prepare the cable for Connectorization.

Description

Automated trimming tool

Cable Type

1-1/4" LCFS114, UCF114

Connector Type

OMNI FIT Premium, Trim Series D01

Replacement Blade

Spare blades: Main blade: TRIM-B17, Jacket blade: TRIM-B18

Mfg. Warranty

1 Years
