Description
Description
Manufacturer
Astron
Model #

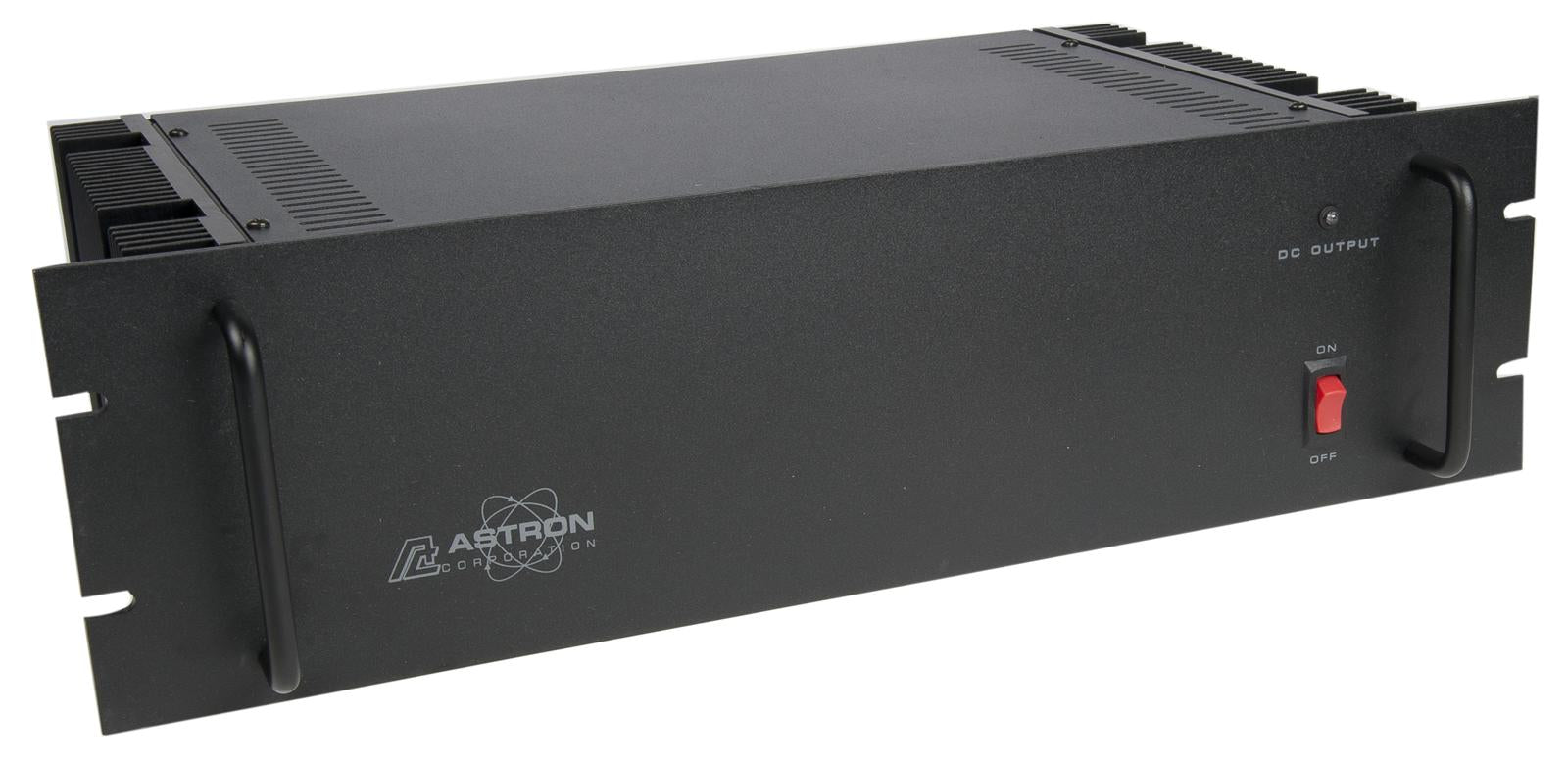

LSRM-35A
Product Description
35 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
28 Volts DC (Adjustable from 22.0-32.0 Volts DC)
Amperage (Cont.)
27
Amperage (Intermittent)
35
Description
Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
- Solid state electronically regulated
- Fold-back current limiting protects power supply from excessive current and continuous shorted output
- Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
- Maintain regulation and low ripple at low line input voltage
- Heavy duty heat sink
- Three conductor power cord
- All metered units feature backlit meters
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
No
Dimensions (Width x Height x
Depth) inches
19 x 7 x 12.5
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
