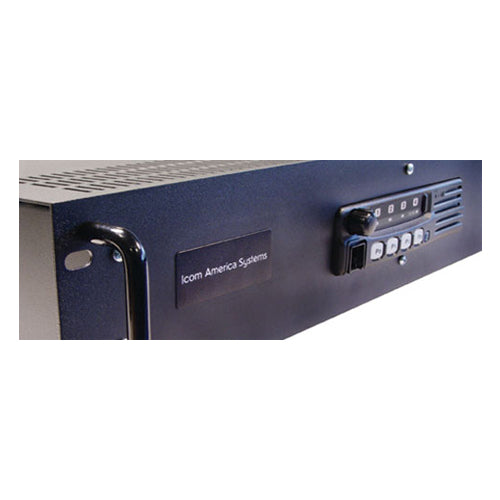

ICOM IAS VOTING RX VHF
Regular price
$2,99900
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Enhance Portable and Mobile Talk-in Performance
VHF 136-174 MHz Coverage (136-174 voting receiver; 150-174MHz center frequency)
- Three-cavity pre-selector provides improved selectivity and increased intermod rejection
- Two standard Pilot tones available, 1950 or 2175
- 600 ohm line output. Pilot tone output adjustable from -20 to +9 dbm
AC to DC auto select, 220/110/12V capable
Power failure? Not a problem! The voting receivers are configured to auto switch from AC to DC
(Batteries not included)

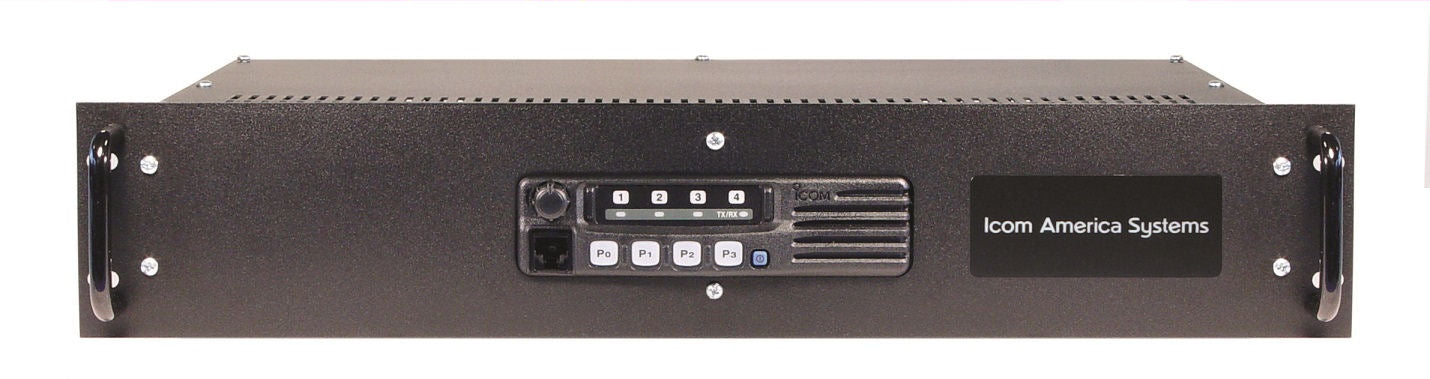

Compact size
Set the voting receiver on a desktop, or mount it in a 19" industry standard rack. Clean and simple layout is easy to access and maintain. Receiver, pilot tone generator and power supply all in one chassis.
Additional features
- Three-cavity band pass filter improves selectivity and intermod performance
- Filter RF specifications: 150-160MHz, 160-170MHz VHF 450-470MHz UHF
- Output impedance 600 ohms balanced
- Audio frequency response 50 to 20kHz +/-2Hz
- Pilot tone frequency 1950Hz or 2175Hz, switch selectable
- Pilot tone stability +/-2Hz
