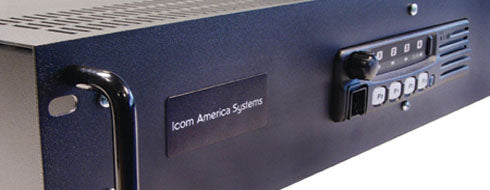

ICOM IAS VOTING RX UHF

UHF 400-470 MHz Coverage (400-470 voting receiver; 460MHz center frequency)

• Three-cavity pre-selector provides improved selectivity and increased intermod rejection
• Two standard Pilot tones available, 1950 or 2175
• 600 ohm line output. Pilot tone output adjustable from -20 to +9 dbm

AC to DC auto select, 220/110/12V capable

Power failure? Not a problem! The voting receivers are configured to auto switch from AC to DC
(Batteries not included)

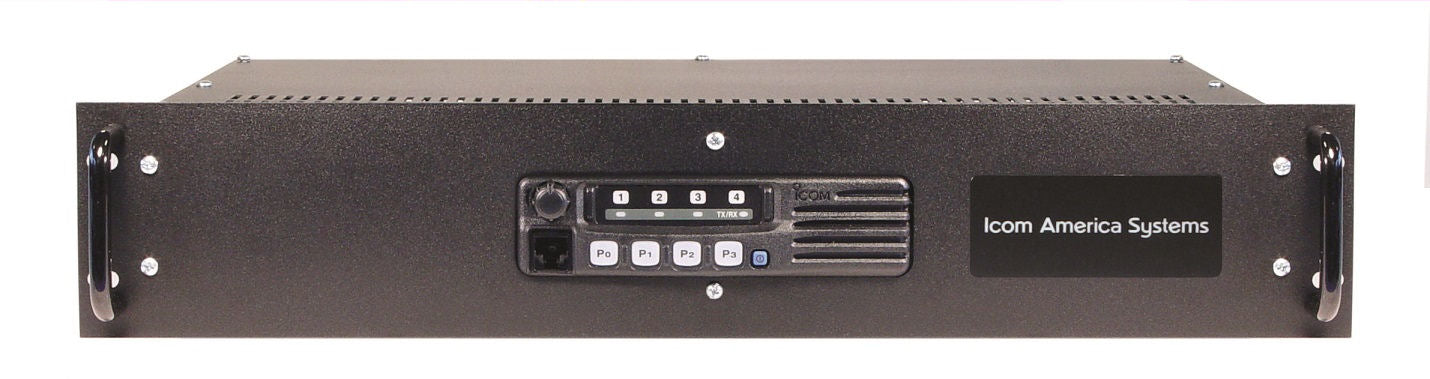

Compact size

Set the voting receiver on a desktop, or mount it in a 19" industry standard rack. Clean and simple layout is easy to access and maintain. Receiver, pilot tone generator and power supply all in one chassis.

Additional features

• Three-cavity band pass filter improves selectivity and intermod performance
• Filter RF specifications: 150-160MHz, 160-170MHz VHF 450-470MHz UHF
• Output impedance 600 ohms balanced
• Audio frequency response 50 to 20kHz +/-2Hz
• Pilot tone frequency 1950Hz or 2175Hz, switch selectable
• Pilot tone stability +/-2Hz
