Bird SK-4500-TC

Bird Technologies Group

SK-4500-TC

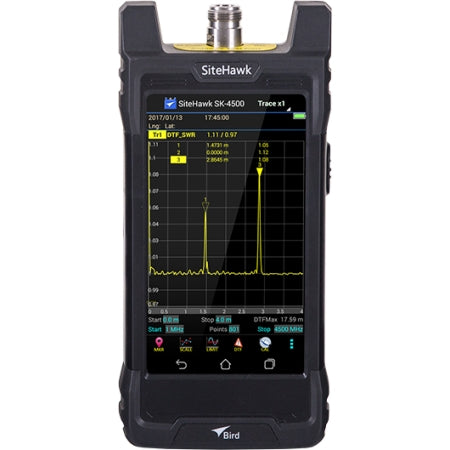

The Bird SiteHawk Analyzer SK-4500-TC operates from 1 MHz to 4500 MHz and features an intuitive interface readily accessible to the first time user and minimizes clicks for an expert using it every day. Substantial internal storage eliminates the need to worry about file storage, holding thousands of traces on the device for future analysis or reporting.

• FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system.
• Fault location or DTF mode indicates VSWR or Return Loss levels at each point along the cable and antenna system length.
• Cable Loss function measures insertion loss of the cable system over a given frequency range.
• USB port for connection to storage device and battery charging.
• 3 Year Warranty
• Includes Bird RF Meter App

Applications

• Suitable for use in Worldwide Cellular and PCS/DCS systems; supporting measurement of CDMA, GSM, and LTE Protocols
.
• Other applications include 3G, Broadcast, Government, Tactical Military, Microwave, Paging, Public Safety, Trunking, WLAN, and TETRA

Standard Accessories

• SK-CAL-MN-C Calibration Combo
• SK-TP-112 Stylus
• APL336-1230 AC Adapter (12 Vdc Output)
• 7002A218-2 Hard Carrying Case
• SK-TC-MNFN-1M RF Cable, 1 meter long
• 920-SK-4500 Instruction Manual
• 7002A219-1 Soft Carrying Case
• 5A2745-1 USB Drive
• SK-CONN-OTG-2 USB OTG Connector

1-4500 MHz

N Female

Yes

1 Year
