Description
Description
Manufacturer
Consolidate Wire
Model #
RG58A/U
Product Description

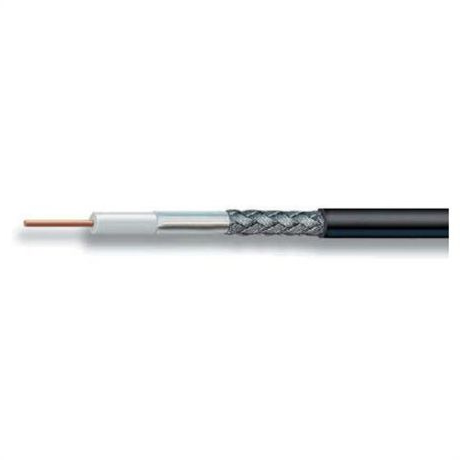

50 Ohm Coaxial Cable (Flexible Cable)
Cable Type
3/16" Braided
Shield %
95% Braid
Impedance
50 Ohms
VOP.
66%
Center Conductor
0.035" Stranded (Flexible Cable)
Insulation
Polyethylene
Other Spec
Mil Spec
Nom. core O.D. (in.)
0.116"
Nom. O.D. (in.)
0.193"
Losses Shown are based on 100 Foot Length
loss 50 MHz
3.7 db
loss 100 MHz
5.4 db
loss 400 MHz
12.4 db
loss 900 MHz
21.1 db
loss 1000 MHz
22.8 db
Nom. Capacitance (pF/ft)
30.8
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
1 Year
