Description
Description
Manufacturer
Comprod Communications
Type
Pass/Reject
Freq. Range (MHz)
406-512MHz
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a singleantenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative

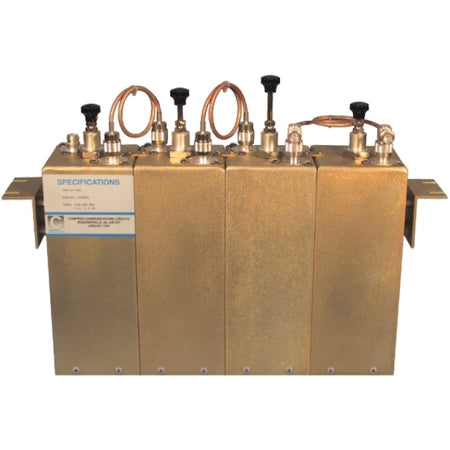

COMPROD 406-512 MHz rack mount duplexer Pass/reject. 5.0 MHz separation. Four cavity. 75db isol. 0.8dB loss. N fem term
Min. Seperation (MHz)
5 MHz
Maximum Input (Watts)
125
Insertion Loss (Tx/Ant-dB)
0.8
Insertion Loss Rx/Ant-dB)
0.8
Connectors
N Female
No. of Cavities/Size
4
temp. Range deg-C
-40 to +60
Maximum VSWR @ 50 Ohms
1.22:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
16.5" x 19" x 4"
Finish
Gold Alodine
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Year
