Description
Description
Manufacturer
Comprod Communications
Type
Pass/Reject
Freq. Range (MHz)
406-512MHz
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a singleantenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative

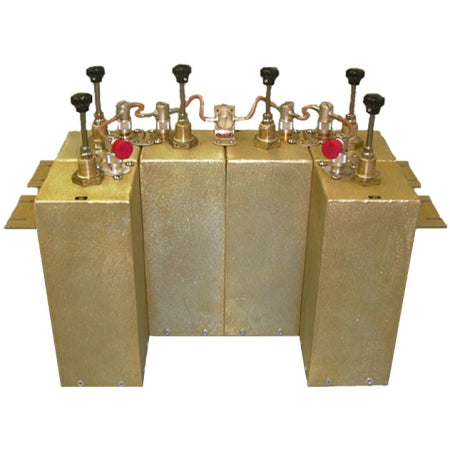

COMPROD 406-512 MHz pass/reject duplexer 3.0 MHz sep. Six 4" cavites. 125 watts. 85db isolation. 1.2.dB insert loss. N fem term
Min. Seperation (MHz)
3 MHz
Maximum Input (Watts)
125
Insertion Loss (Tx/Ant-dB)
1.20
Insertion Loss Rx/Ant-dB)
1.20
Connectors
N Female
No. of Cavities/Size
6
temp. Range deg-C
-40 to +60
Maximum VSWR @ 50 Ohms
1.22:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
23" x 17" x 10"
Finish
Gold Alodine
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Year
