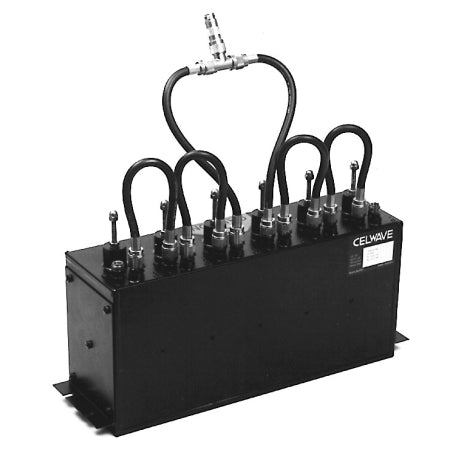

EMR 526-4-2-T2
Regular price
$3,59995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
EMR Corp.
Type
Pass Notch
Product Description
435-474 MHz Duplexer
Freq. Range (MHz)
435-474 MHz
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a singleantenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative
Pass/reject duplexer. 250 watt. 1.0dB insert. loss. N/F connectors. 6 dual-notch resonators.
Min. Seperation (MHz)
3
Maximum Input (Watts)
250
Insertion Loss (Tx/Ant-dB)
1.0
Insertion Loss Rx/Ant-dB)
1.0
Connectors
N Female
No. of Cavities/Size
4 (4")
Maximum VSWR @ 50 Ohms
1.3:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
5-1/4 x 19 x 14
Finish
Black
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Year
