EMR 65544/SNC/440-470
Regular price
$2,69995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
EMR Corp.
Type
Pass Notch
Product Description
440-470 MHz Duplexer
Freq. Range (MHz)
440-470 MHz
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a singleantenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative

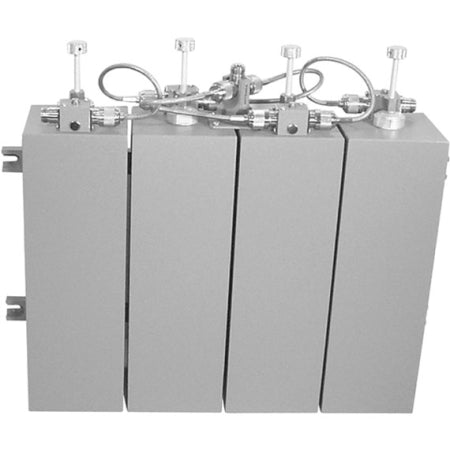

EMR 440-470 MHz 4 cavity Pass Notch duplexer. 3 to 10 MHz spacing. 0.8-1.5dB insert loss, 150 watt, N/F conn
Min. Seperation (MHz)
3
Maximum Input (Watts)
150
Insertion Loss (Tx/Ant-dB)
1.2
Insertion Loss Rx/Ant-dB)
1.2
Connectors
N Female
No. of Cavities/Size
4
Maximum VSWR @ 50 Ohms
1.2:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
12 x 19 x 19
Finish
Tek Black
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Year
