Description
Description
Manufacturer
Sinclair
Product Description

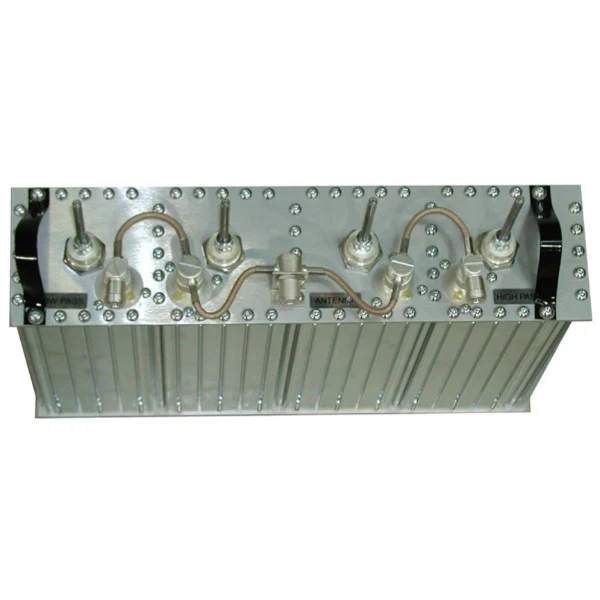

406-512 MHz Duplexer
Freq. Range (MHz)
406-512
Product Narrative
SINCLAIR 406-512 MHz Duplexer. Pass- reject type. 4 cavity. 350W. 5 MHz spacing. 0.8 dB loss. N/female conns
Min. Seperation (MHz)
5 MHz
Maximum Input (Watts)
350
Insertion Loss (Tx/Ant-dB)
0.8
Insertion Loss Rx/Ant-dB)
0.8
Connectors
N Female
No. of Cavities/Size
4
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Factory Tune FREE OF CHARGE
Size (HxWxD")
4.2" x 19" x 16.3"
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
2 Year
