Sinclair Technologies Q3330E-3
Regular price
$2,39995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair
Product Description
450-470 MHz Duplexer
Freq. Range (MHz)
450-470
Product Narrative

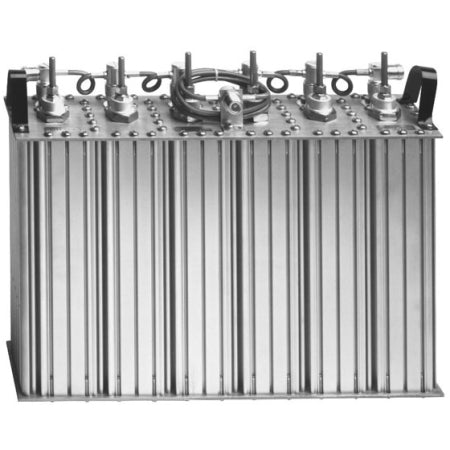

SINCLAIR 450-470 MHz Duplexer. Pass- reject type. 6 cavity. 350W. 5 MHz spacing. 1.2 dB loss. N/female conn
Min. Seperation (MHz)
5 MHz
Maximum Input (Watts)
350
Insertion Loss (Tx/Ant-dB)
1.2
Insertion Loss Rx/Ant-dB)
1.2
Connectors
N Female
No. of Cavities/Size
6
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Factory Tune FREE OF CHARGE
Size (HxWxD")
8.3" x 19" x 12"
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
2 Year
