Description
Description
Manufacturer
Sinclair
Product Description
440-480 MHz Duplexer
Freq. Range (MHz)
440-480
Product Narrative

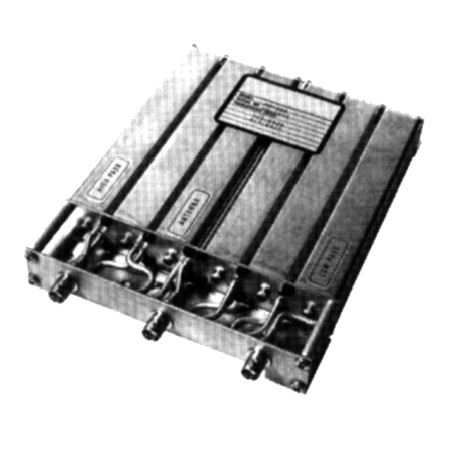

SINCLAIR 440-480 MHz Mobile Duplexer. Notch (reject) type. Six cavity. 5 MHz separation. N female conns.
Min. Separation (MHz)
5 MHz
Maximum Input (Watts)
50
Insertion Loss (Tx/Ant-dB)
1.4
Insertion Loss (Rx/Ant-dB)
1.4
Connectors
N Female
No. of Cavities
6
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Factory Tune FREE OF CHARGE
Size (HxWxD")
1.3" x 6.25" x 9"
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
2 Years
