Download the IDAS Brochure to learn what IDAS can do for you!

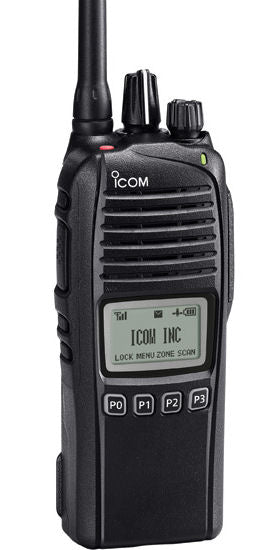

Ready for NXDN™ Type-C Trunking with Superior Waterproof Protection
Type-C Trunking Compatible
The IC-F3360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.
- Paging call
- All call
- Individual call
- Text message
- Stun, Kill and Revive (RX)
- Over-the-air alias
- 15-bit digital scrambler
- Mixed mode operation (Conventional system)
- Broadcast call
- Group call
- Status call
- Emergency call
- Radio check (RX)
- GPS
- RAN
Menu-driven user interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings
Built-in GPS receiver
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sent to dispatch stations.
Man down & lone worker
The man down function sends an emergency signal if left in a horizontal position. The lone worker function detects if the transceiver is not operated or not moved for a preset period.
Transparent data
When IC-F3360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode.
IP67 dust-tight & waterproof
The IC-F3360D series provides rugged protection against dust and water. The transceiver can with stand 1m depth of water for 30 minutes.
800mW (typ.) audio output
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.
Other features
- 512 memory channels with 128 zones
- CTCSS/DTCS/DTMF encoder/decoder*
- MDC 1200 PTT ID transmission*
- Inversion voice scrambler*
- Audio compander
