Description
Description
Manufacturer
TE Connectivity
Product Description
Fiberglass Enclosed Copper Element
Product Narrative

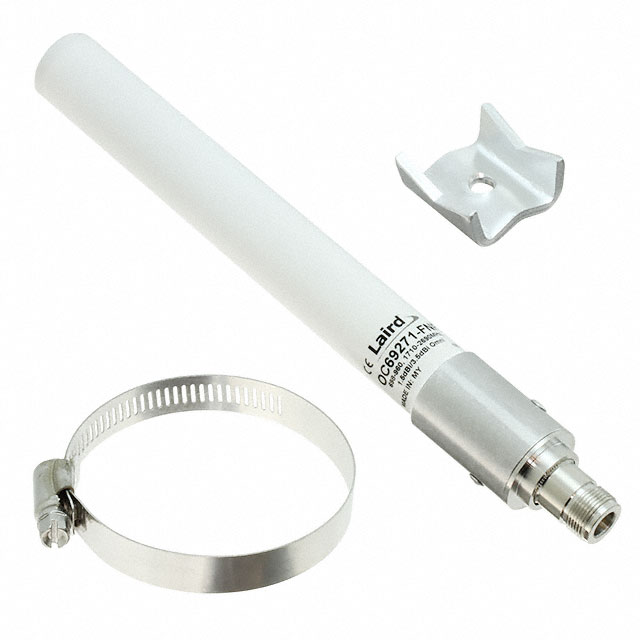

The Laird OC69271-FNM antenna is a Multi Band omnidirectional antenna with N Female connector that covers the domestic LTE700/Cellular/PCS/AWS/MDS, WiMAX 2300/2500, and global GSM900/GSM1800/UMTS/LTE 2600MHz bands. The antenna can be used in both indoor and outdoor applications. It comes complete with mast mounting hardware and includes a UV stable radome enclosure
Specific Freq. (MHz)
698-960 MHz / 1710-2700 MHz
Gain (dBi)
3.5 dBi
Maximum Input Power (Watts)
10
Direct Termination
N Female
Overall Length
9.8 in
Rated Wind Velocity (MPH)
135 MPH
Weight
0.5 lb
Warranty
5 Year
