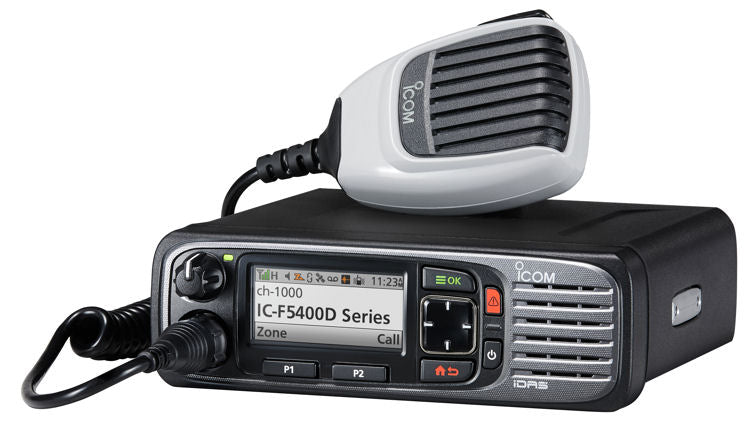

ICOM F5400D

The F5400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.

Channels: 1024 channels w/128 zones
Output power: 50 Watts
Frequencies: 136-174MHz
Digital Conventional: IDAS built-in
Digital Trunking: Upgrade available
LTR®: Built-in
GPS: Built-in
Programmable keys: 7
Waterproof rating: IP55
Version: Full display (F5400D)

Intuitive user interface:

The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

Multiple controller configurations

The F5400D allows the user to configure the radio three ways to suit almost any application or installation requirement. The intercom function is available between controllers and/or COMMANDMIC.

The new COMMANDMIC is an identical physical layout and user interface as the F3400D. By installing in into a vehicle it allows a secondary remote control of the F5400D.









IDAS Features

The F5400D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features available:

• Analog/digital conventional mixed mode operation
• Upgrade to Type-D trunking
• Upgrade to Type-C trunking
• Status
• Text message
• Radio check
• Stun, kill and revive
• Call alert
• Remote monitor
• And much more

Additional features

• Hands-free communication with built-in Bluetooth®
• Safety features: emergency button, lone worker function, and power OFF emergency function
• Transparent data modem can transmit data at 9600bps over the radio
• Send up to 100 character text messages
• Programmable alerts can vibrate when a specific user calls
• Channel voice announcement
• USB port to connect to a PC
• Active Noise Canceling
• Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
• D-SUB 25-pin ACC connector with programmable functions
• Built-in 20W audio amplifier for connecting with external public address systems
• Tactical group function
• Normal, priority and voting scan
