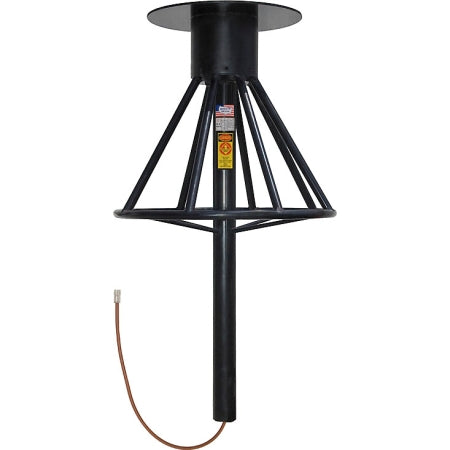

TeleWave ANT220K
Regular price
$000
Unit price
Shipping calculated at checkout.
Freight: this item requires LTL shipping
DOCUMENTS
DOCUMENTS
Description
Description
Product Description
30-3000 MHz Discone Antenna
Type
Wideband Discone Antenna
Narrative
The Telewave ANT220K is an extremely rugged, wideband discone antenna for all frequencies between 30 MHz and 3 GHz. The wide vertical beamwidth of discone antennas allows clear communication for ground and ground-to-air applications. Each discone is constructed from Mil. Spec. 6061-T6 solid aluminum, fully welded at all joints for maximum strength. All internal junctions are enclosed within a ruggedized radome to ensure survivability in the worst environments. It designed to be clamped to a 1.5"-3.5" diameter galvanized steel support pipe. An ANTC482 dual clamp set is included
Bandwidth >1.5 VSWR
2.5:1 or less in band
Gain (dB)
2.1 dBi
General Frequency (MHz)
30-3000
Nominal Impedance (Ohms)
50
Direct Termination
N-Male on RG-393 feed cable
Maximum Power Input (Watts)
500
Lightning Protection
DC Ground
Overall Length
53" H x 36" W
Specific Frequency (MHz)
75-3000
Vertical Beamwidth (Deg)
110 degrees
Lateral Thrust @ RWV (lb)
66
Rated Wind Velocity (RWV, MPH)
150
Weight (lb)
52
Mount Hdw. Incl.
ANTC482 dual clamp set is included
Wind Load (sq-ft)
1.67
Mfg. Warranty
5 Years
