Motorola SL300 (UHF) w/Display
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Radio Includes:
- 2300mAh Li-ion Battery (PMNN4468)

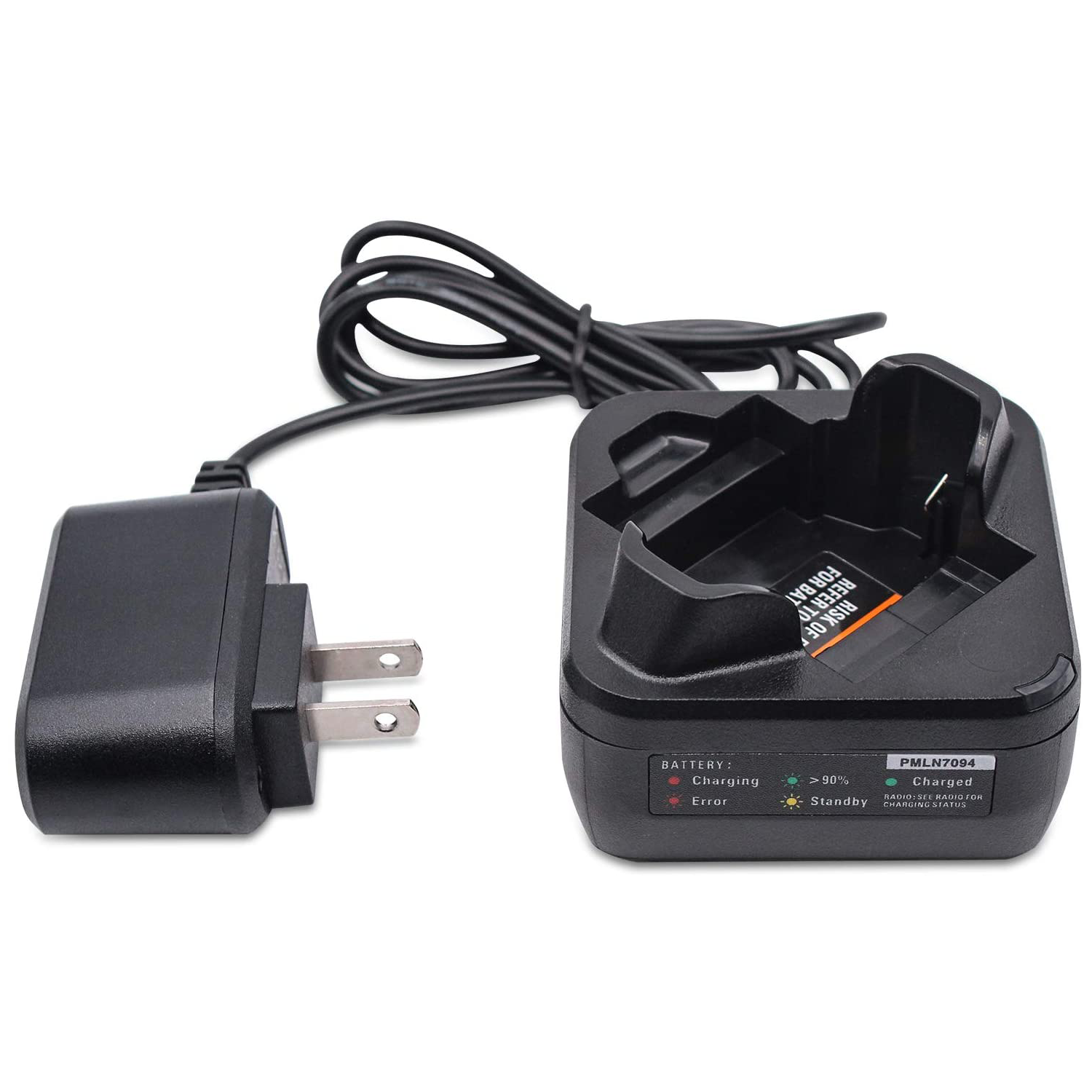

- Your choice of charger

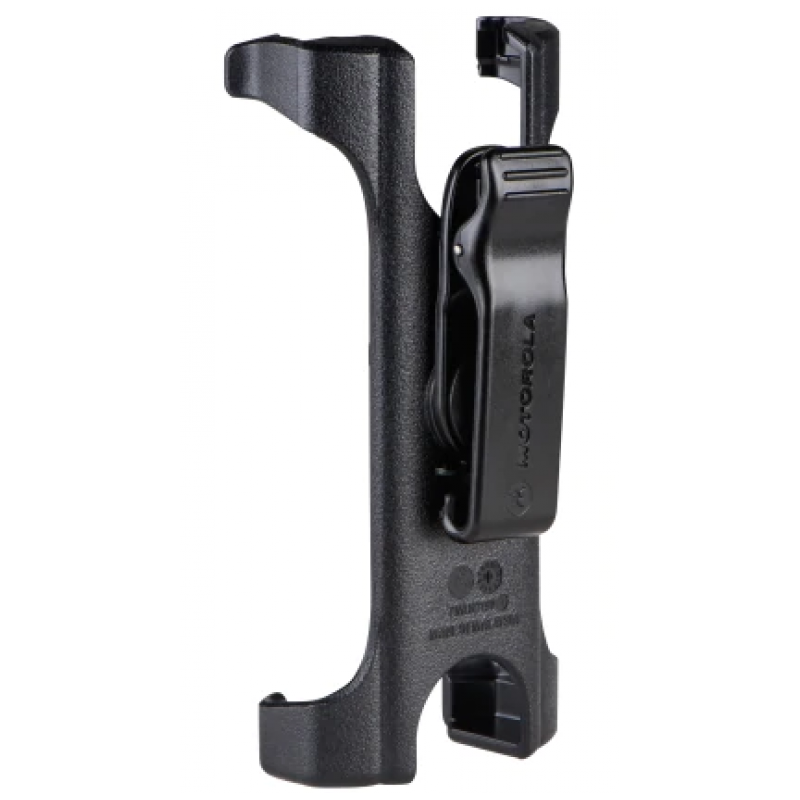

- Swivel Carry Holster (PMLN7190)

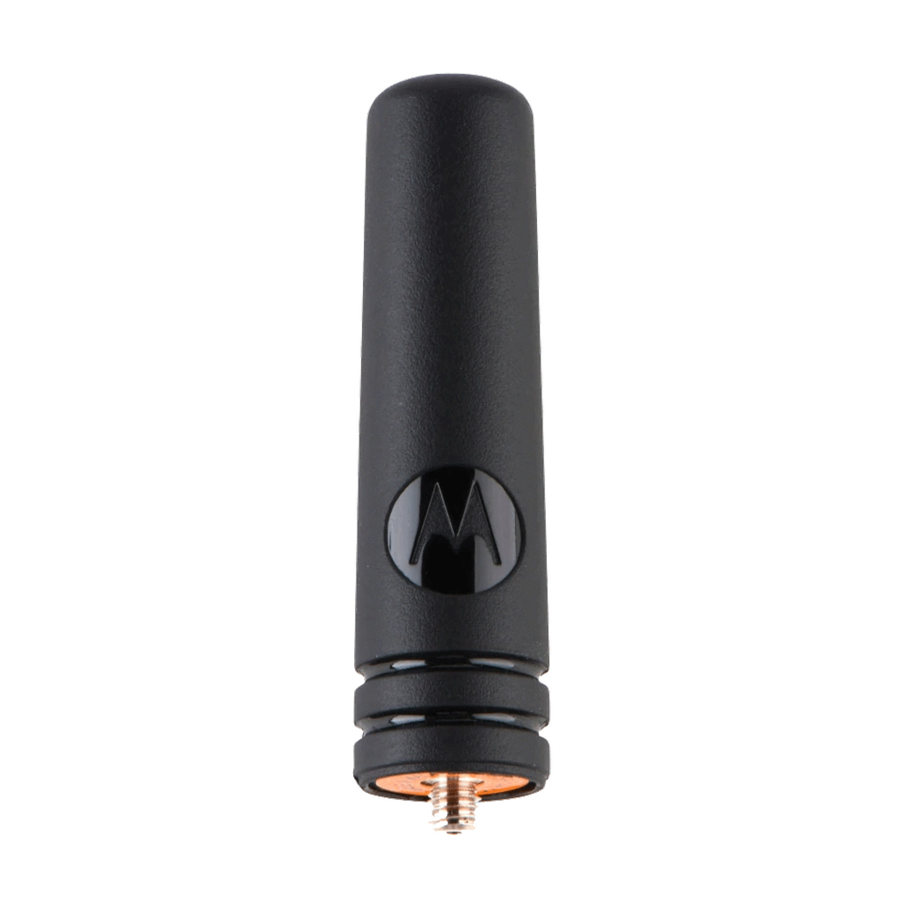

- Your choice of antenna

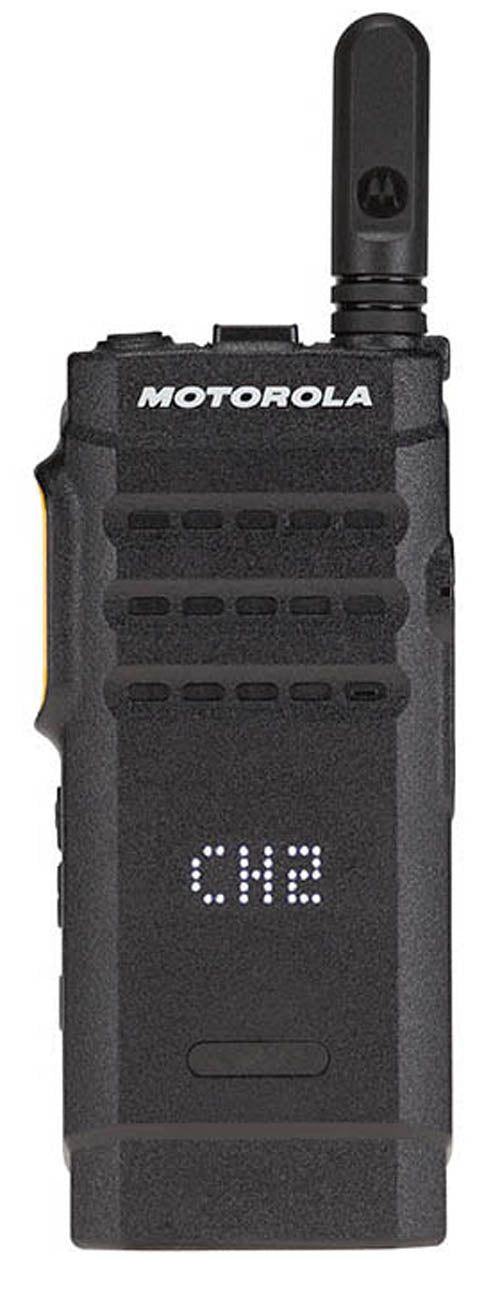

MOTOTRBO SL300 portable radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile.
Whether you're working in the field or at a black-tie event, the SL300 is boldly designed to keep you efficiently connected. Measuring under an inch thick, the SL300 is ultra-portable with a stubby antenna, curved edges and rugged frame. It features an Active View display with a matrix of LED lights behind the radio housing and “Range Max” technology, an advanced radio design and patented antenna for enhanced range. Designed for easy and intuitive use and outfitted with the latest technology, the SL300 is the perfect work partner.
MOTOTRBO SL300 Data Sheet
MOTOTRBO Two-way Radio Solutions At-A-Glance
MOTOTRBO Commercial Tier Accessory Catalog
MOTOTRBO SL300 Display Radio
MOTOTRBO SL300 Non-Display Radio
Features
Ultra-Slim
Measuring less than an inch thick, the SL300 redefines portability. It can be carried easily in a pocket or purse without catching or bulging.
Simple Operation
The SL300 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.
Dual Capacity Direct Mode
Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel—without the need for a repeater.
IP54 Rated
Rugged and reliable, the SL300 is splashproof and dustproof for use in harsh environments.
Range Max Receiver
An advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.
Comprehensive accessory portfolio
Innovative carry options, earpieces and charging stations allow you to get maximum efficiency from your SL300.
Performance Characteristics
-
Standard battery chemistry type Lithium Ion
-
Repeater capable Yes
-
Power 1, 2, 3, Watt
-
Estimated battery life Analog (hours) - 12.5 (VHF Non-Display), 11.8 (VHF Display); 12.5 (UHF Non-Display), 11.8 (UHF Display)
Digital - 15 (VHF Non-Display), 14 (VHF Digital); 15 (UHF Non-Display), 14 (UHF Display) -
Frequency range UHF - 403 - 470 MHz
-
Power 3.7V (Nominal)
-
Frequency band UHF
Physical Characteristics
-
Display No Display, Active View
-
Dimensions H x W x D (with standard battery) 4.95 X 2.17 x 0.87 in
(125.7 X 55.0 X 22.0 mm) -
Weight (with standard battery) VHF: 5.96 oz (168.9 g), UHF: 5.84 oz (165.6 g)
Radio Features
-
Voice announcement Yes
-
Group call Yes
-
Programmable buttons Yes
-
Talkaround Yes
-
Number of channels 99
-
Channel spacing (kHz) 6.25, 12.5
-
One to one calling Yes
-
Missed call alerts Yes
Technology
-
System type Conventional, TDMA, Capacity Plus
User Environment
-
Mil spec 810 C, 810 D, 810 E, 810 F, 810 G
-
IP Standards IP54
