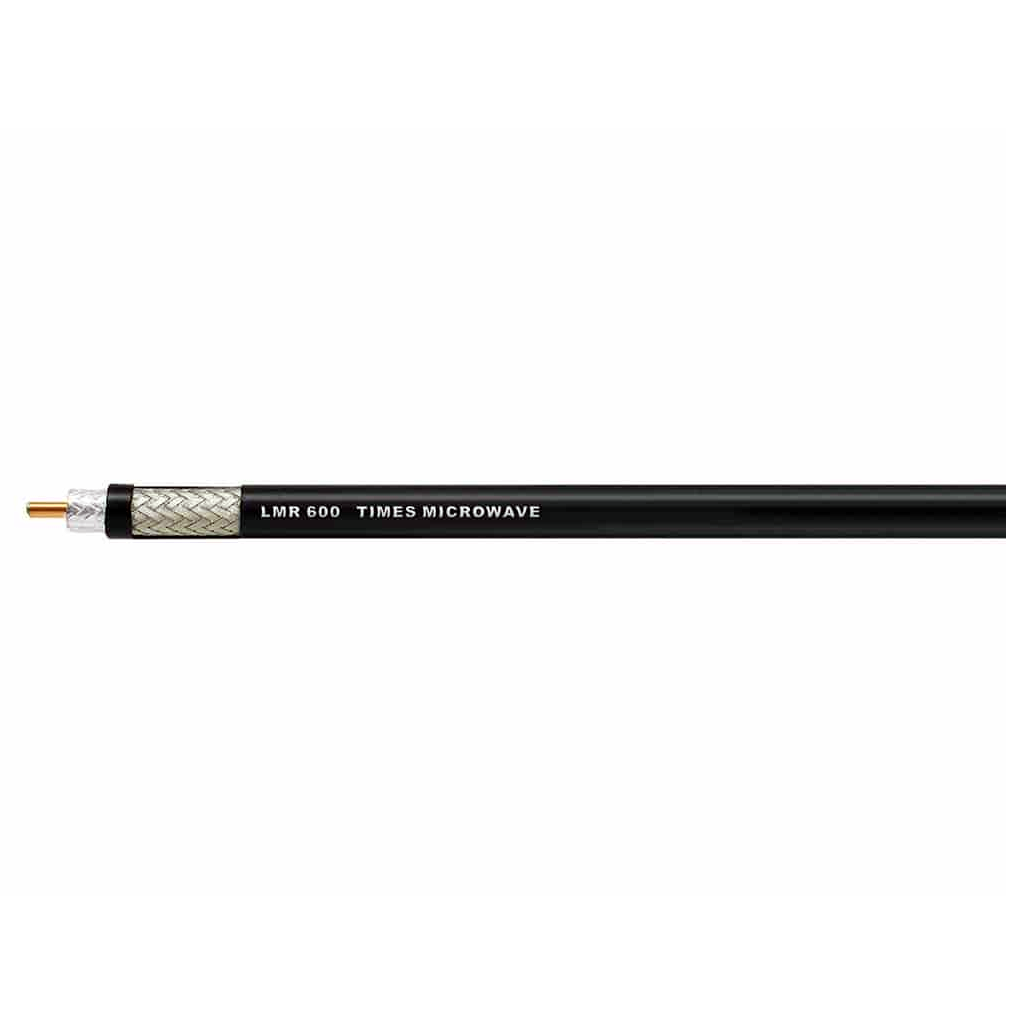

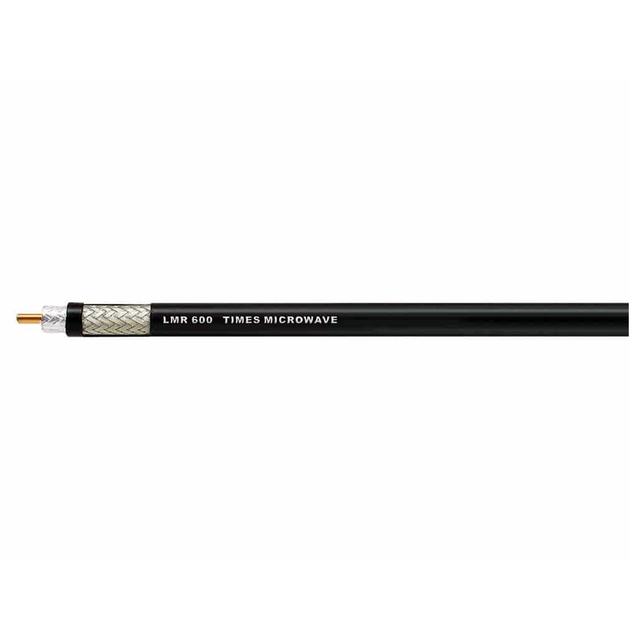

Times Microwave LMR-600-LLPX-BK
Regular price
$1499
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Times Microwave
Product Description
1/2" LMR®600 Plenum Cable
Cable Type
1/2" Plenum Rated
Impedance
50 Ohms
Maximum Frequency
9.3 GHz
VOP.
76%
Peak Power (W)
40 kW
DC Resistance (ctr/shld) Ohms
0.73/1.20
Capacitance
26.4 pF/Ft
Insulation
.067 uH/Ft
Outer Conductor
Tape & TC Braid
Inner Conductor
Copper Clad Aluminum (Solid)
Diameter Over Jacket
0.590 in.
Min. Bending Radius
3.00 in.
Bending Moment (ft lbs)
2.75 ft. lbs.
Weight Per Foot
.23 lb/ft
Tensile Strength
325 lbs.
Flat Plate Crush Strength
45 lbs/in.
Losses Shown are based on 100 Foot Length
Atten @ 30 MHz
0.420 dB
Atten @ 50 MHz
0.550 dB
Atten @ 150 MHz
0.960 dB
Atten @ 450 MHz
1.720 dB
Atten @ 824 MHz
2.380 dB
Atten @ 894 MHz
2.490 dB
Atten @ 960 MHz
2.590 dB
Atten @ 1700 MHz
3.57 dB
Atten @ 1920 MHz
3.82 dB
Atten @ 2000 MHz
3.90 dB
Avg Power @ 30 MHz
5.50 kW
Avg Power @ 50 MHz
4.20 kW
Avg Power @ 450 MHz
1.30 kW
Avg Power @ 800 MHz
1.00 kW
Avg Power @ 894 MHz
0.93 kW
Avg Power @ 960 MHz
0.89 kW
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
