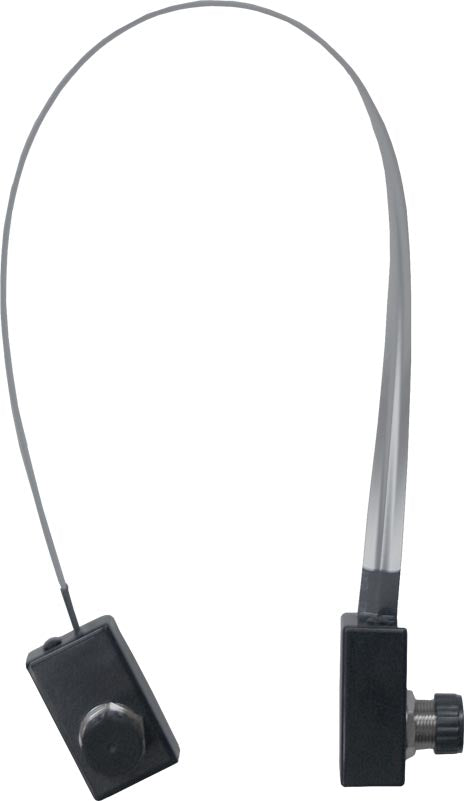

Through Window/Door Cable Set
Specifications:
Frequency:
DC to 1500MHz
Max Power Rating:
HF to 50MHz: 150w (SSB), 50w(FM/CW),
144MHz: 40w (FM) , 440MHz: 30w (FM),
1200 MHz: 10w (FM)
Length:
19.7" (between connectors)
Weight:
102g
Connector:
UHF Female to UHF Female
VSWR:
HF up to 500MHz: Less than 1.2
500 to 1000MHz : Less than 1.3
Up to 1000MHz: Less than 2.0
1200MHz: Less than 1.7.
Impedance:
50 ohms
Insertion Loss:
144MHz: Less than 0.3dB
440MHz: Less than 0.6dB
1200MHz: Less than 1.6dB
