Description
Description
Manufacturer
NCG Comet
Model #
CFX-431A
Product Description

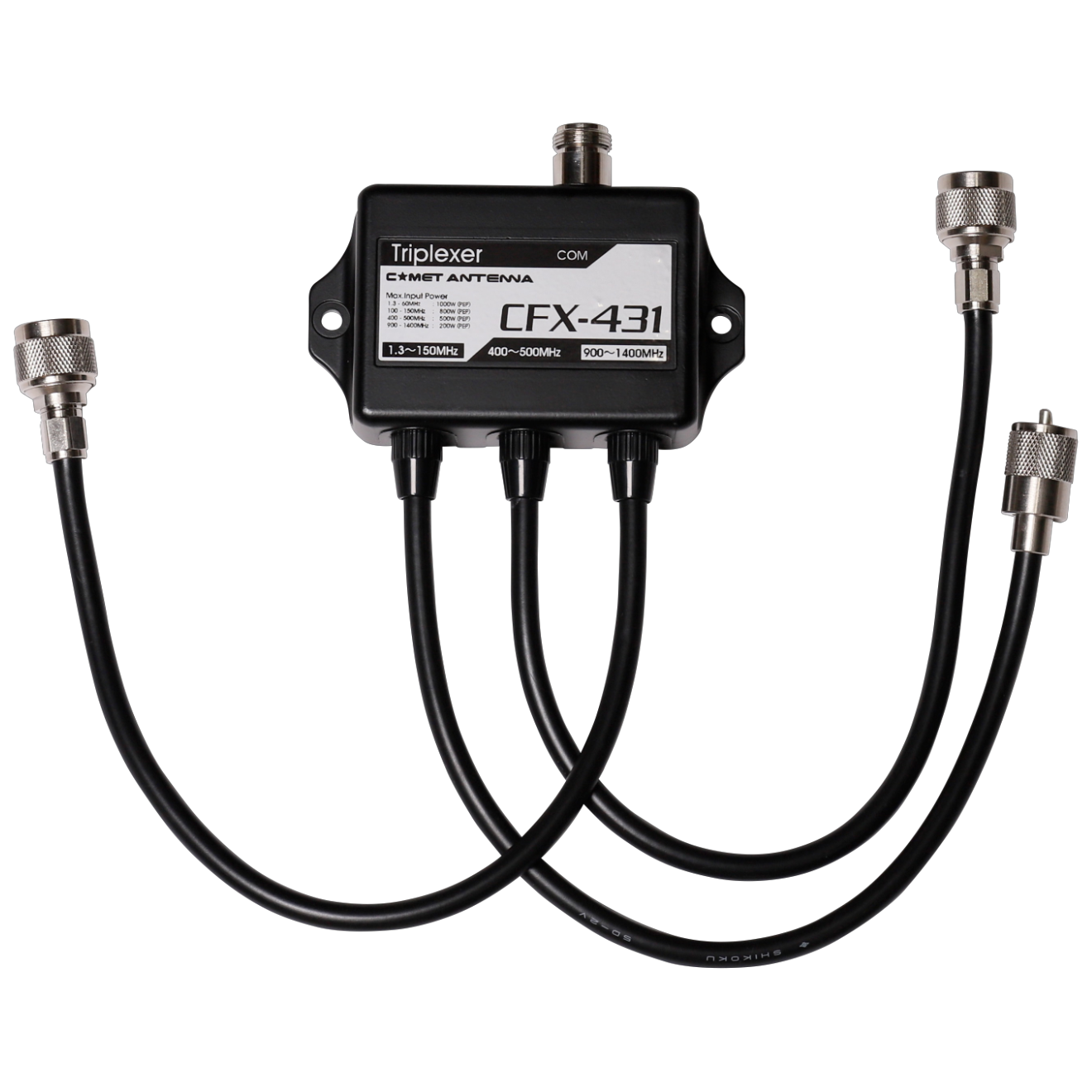

Triplexer
Band Pass
1.3-150MHz/ 400-500MHz / 900 -1.4GHz
Insertion Loss
0.2dB
Maximum Power (Watts)
1.3-60MHz = 1000w PEP
100-150MHz = 800w PEP
400-500MHz = 500w PEP
900-1400MHz = 200w PEP
Isolation
45dB

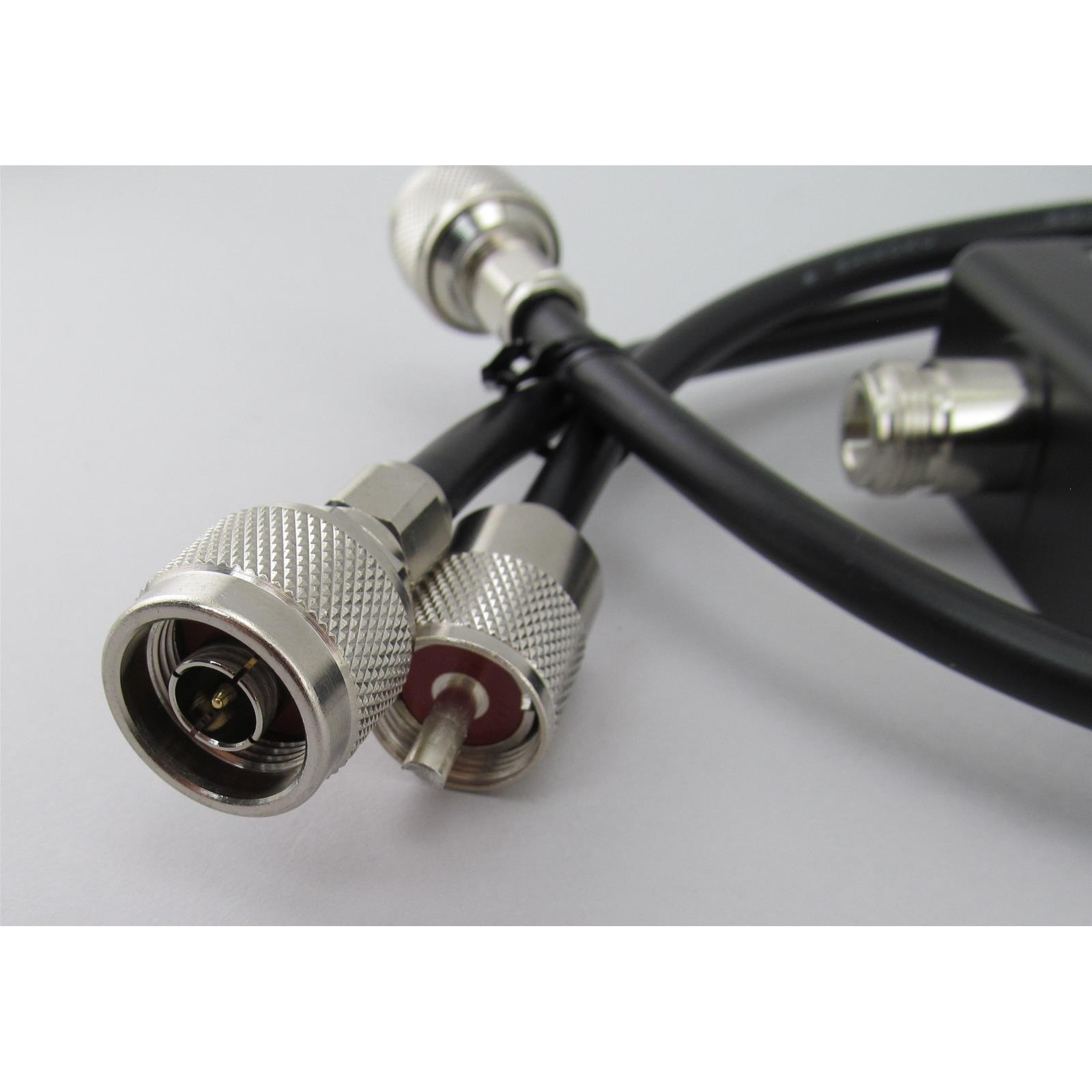

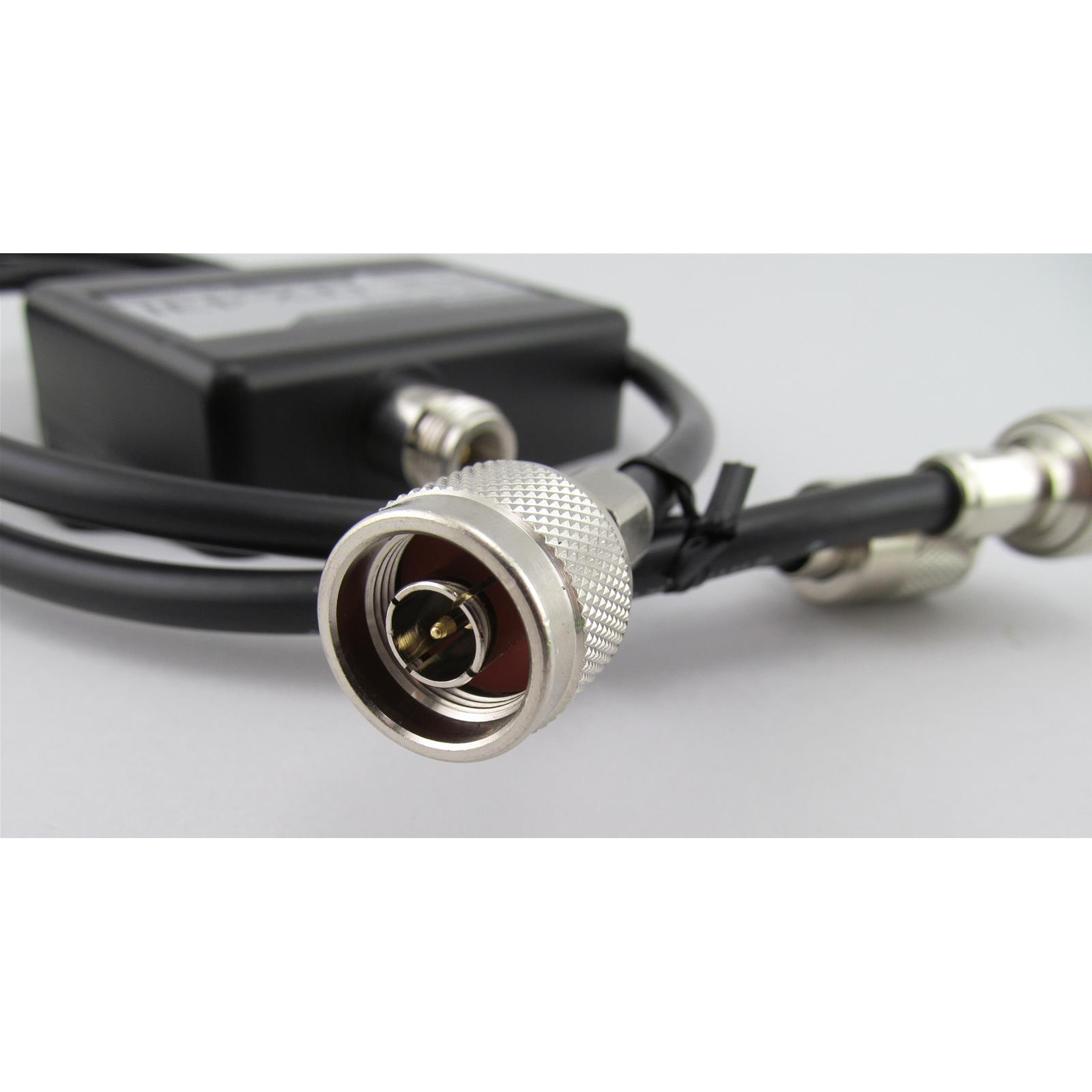

Connectors:
Low In: PL-259
Mid In: N Male
High In: N Male
Output: N Female
Warranty
1 Year
