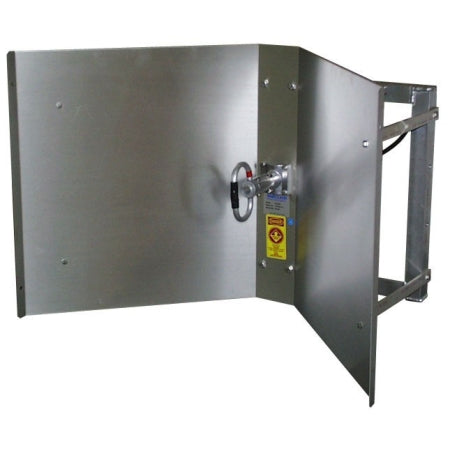

Sinclair Technologies SV402-SF1SNM
Regular price
$1,19995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair
Product Description
800-900 MHz corner reflector
Product Narrative
Technical Specs
Specs
Specific Frequency 800-900 MHz
Gain dBi 12.15 dBi
Gain dBd 10 dBd
Maximum Power 100 W
RF Connector N Male
Jumper Included Yes
Item Width 48 in
Item Height 18 in
Item Length 24 in
Vertical Beamwidth 52 deg
Type of Hardware Included Clamp Set
Maximum Rated Wind Velocity 100 mile/h
Item Weight 23 lb
Lightning Protection DC Ground
Maximum VSWR 1.5:1
Horizontal Beamwidth 30 deg
Polarization Linear
Warranty
5 Years
