1 7

MPN: V86
BRAND: ICOM
PRODUCT TYPE: Handheld Radio
SKU: 9074

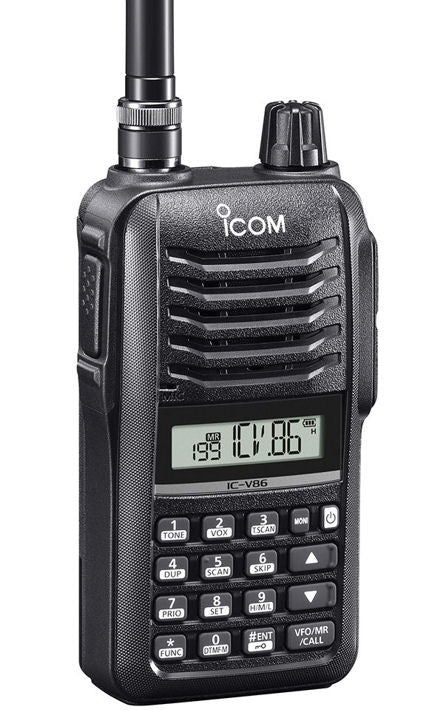

ICOM V86

Field Programmable VHF Radio, 7 Watts Transmit Power, 200 Channels

$139⁹⁵

Shipping calculated at checkout.

Configuration

DOCUMENTS

Brochure

IC V86 PRODUCT BROCHURE 06 05 2019

Description

Radio Includes:

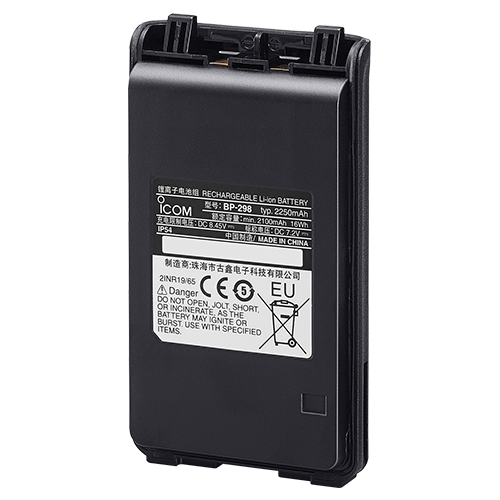

BP298 Battery Pack

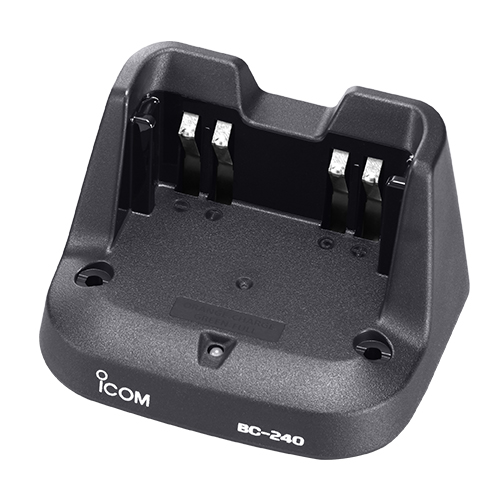

BC240 Desktop Charger

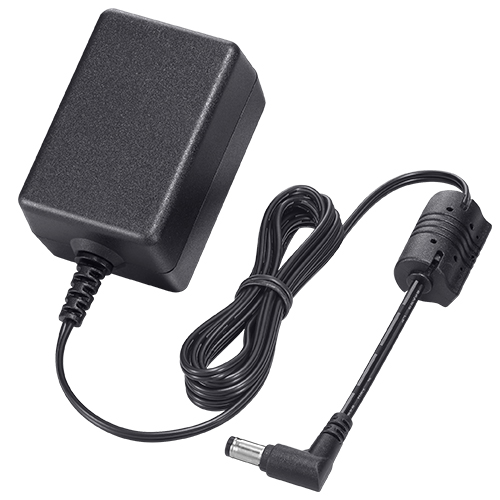

BC242 AC Adapter

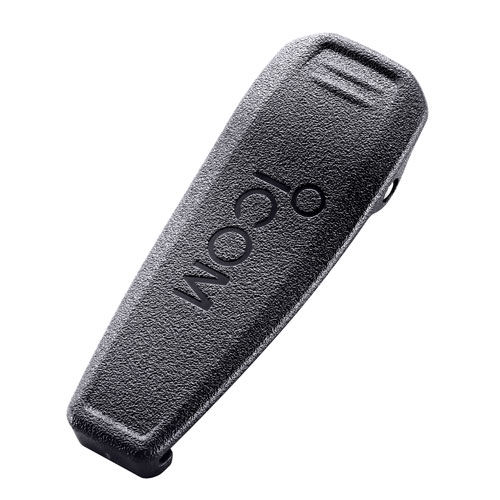

MB124 Belt Clip

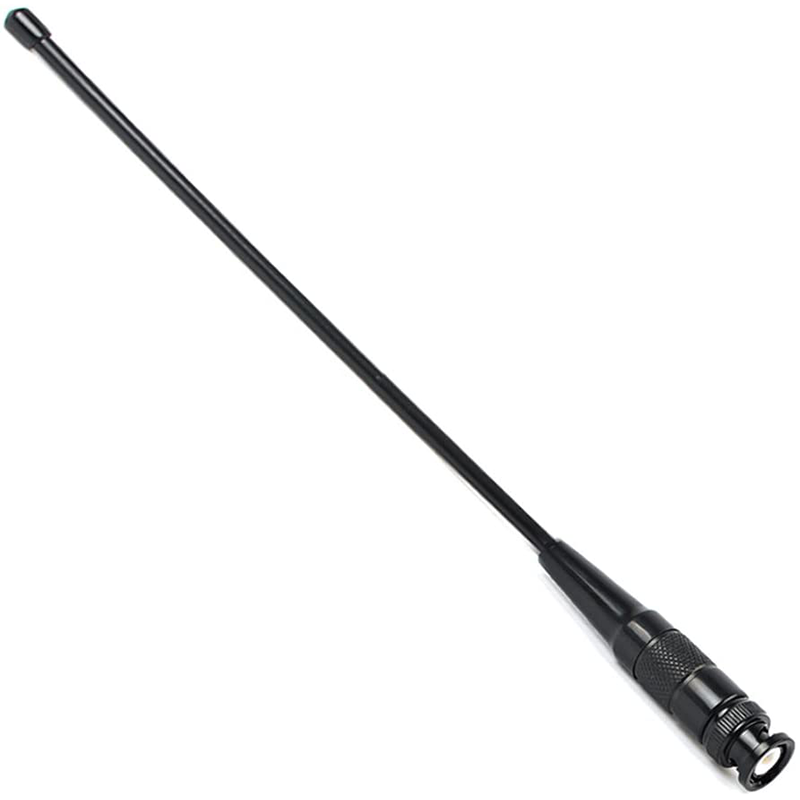

Antenna
1 Year Factory Warranty

7 W Output Power and 1500 mW Audio

7 W output power plus new antenna provides 1.5 times* more coverage

1.5 times higher sound pressure
*Wide open space
* Approximately, compared to 5.5 W radio (IC-V80). Wide open space. Communication range may differ depending on operating environment or weather conditions, etc. 7 W output power is only for the IC-V86.

More audio, 1500 mW audio output

1500 mW powerful audio

IP54 and MIL-STD 810G; rugged design against dust, water,
vibration and shock. Perfect for outdoor use.

19 hours* of long lasting battery life

* EX Hi power with BP-298. TX : RX : standby = 5 : 5 : 90 (3 sec. : 3 sec. : 54 sec. ) (The Power Save function is set to "P–S.16")

Durable BNC type antenna connector

Made in Japan quality and reliability

Other Features

User selectable Volume Level, VFO/Memory Channel selection control
Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
Integrated VOX function
200 memory channels, 1 Call channel and 6 scan edges
Built-in CTCSS and DTCS encoder/decoder and Tone Scan
Priority, program, memory, skip and tone scanning

Supplied accessories

BP-298 battery pack
BC-240 Desktop charger
BC-242 AC adapter
MB-124 belt clip
Antenna

General

IC-V86

Frequency range
(Guaranteed range)

TX: 144–148 MHz
RX: 136–174 MHz

Type of emissions

F2D, F3E (FM, FM-N)

Number of channels

207 channels (200 memory channels, 1 call channel and 6 scan edges)

Antenna impedance

50Ω

Power supply requirement

7.5V DC

Operating temperature range

–20 ?C to +60 ?C, –4 °F to +140 °F

Frequency stability

±2.5ppm (–20 ?C to +60 ?C, –4 °F to +140 °F)

Current drain TX
(EX Hi/Hi/Mid/Low)

1.6/1.4/1.0/0.5 A typical

Current RX
(Max. audio)

450 mA typ. (INT SP),
200 mA typ. (EXT SP)

Dimensions (W x H x D)
(Projections not included)

58.6 × 112 × 30.5 mm,
2.3 × 4.4 × 1.2 in
(with BP-298)

Weight (Approximate)

300 g, 10.6 oz
(with BP-298, FA-B57V)

Transmitter

IC-V86

Output power

7.0/5.5/2.5/0.5 W
(EX Hi/Hi/Mid/Low)

Maximum frequency deviation

±5.0 kHz/±2.5 kHz (Wide/Narrow)

Spurious emissions

Less than –60 dB

External microphone connector

3-conductor 2.5 (d) mm (1/10")/2.2 kΩ

Receiver

IC-V86

Sensitivity

–124 dBm typical

Squelch sensitivity

–126 dBm typical

Selectivity (Wide/Narrow)

75 dB typical/
70 dB typical

Intermodulation

65 dB typical

Audio output power Internal SP

1500 mW typical (with 8 Ω load)

Audio output power External SP

550 mW typical (with 8 Ω load)

External speaker connector

3-conductor 3.5(d)mm (¹/₈″)/8Ω

Applicable U.S. Military Specifications

Standard

MIL-810 G

Method

Procedure

Low Pressure

500.5

I, II

High Temperature

501.5

I, II

Low Temperature

502.5

I, II

Temperature Shock

503.5

I-C

Solar Radiation

505.5

I

Rain Blowing/Drip

506.5

I, III

Humidity

507.5

II

Salt Fog

509.5

–

Dust Blowing

510.5

I

Vibration

514.6

I

Shock

516.6

I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard

Dust and Water

IP54 (Dust-protection, water resistance)
