Laird TE Connectivity Y4063

TE Connectivity

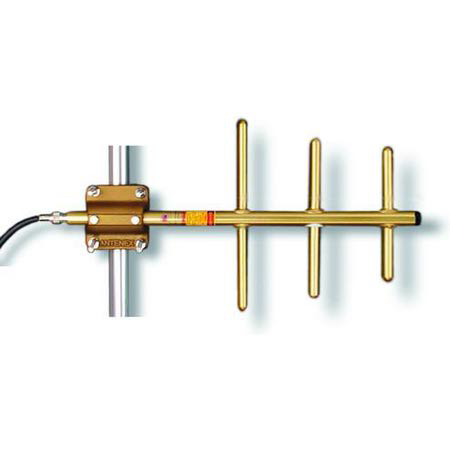

406-430Mhz 3 element directional antenna. 7.1 dB gain 300 watt. Direct N female termination. Mounting hardware included. Gold anodized for long life.

Maximum VSWR 1.5:1

Maximum Power 300 W

Gain 7.1 dBd

Gain 9.2 dBi

Polarization Linear

Horizontal Beamwidth 72 deg

Vertical Beamwidth 57 deg

Lightning Protection DC Ground

Item Length 22.8 in

Item Weight 2 lb

Tuned Frequency (406-430 MHz)

RF Connectors N Female

Maximum Rated Wind Velocity 100 mile/h

Type of Hardware Included Clamp set

Jumper Included No

5 Year
