CommScope DB224-E

Commscope

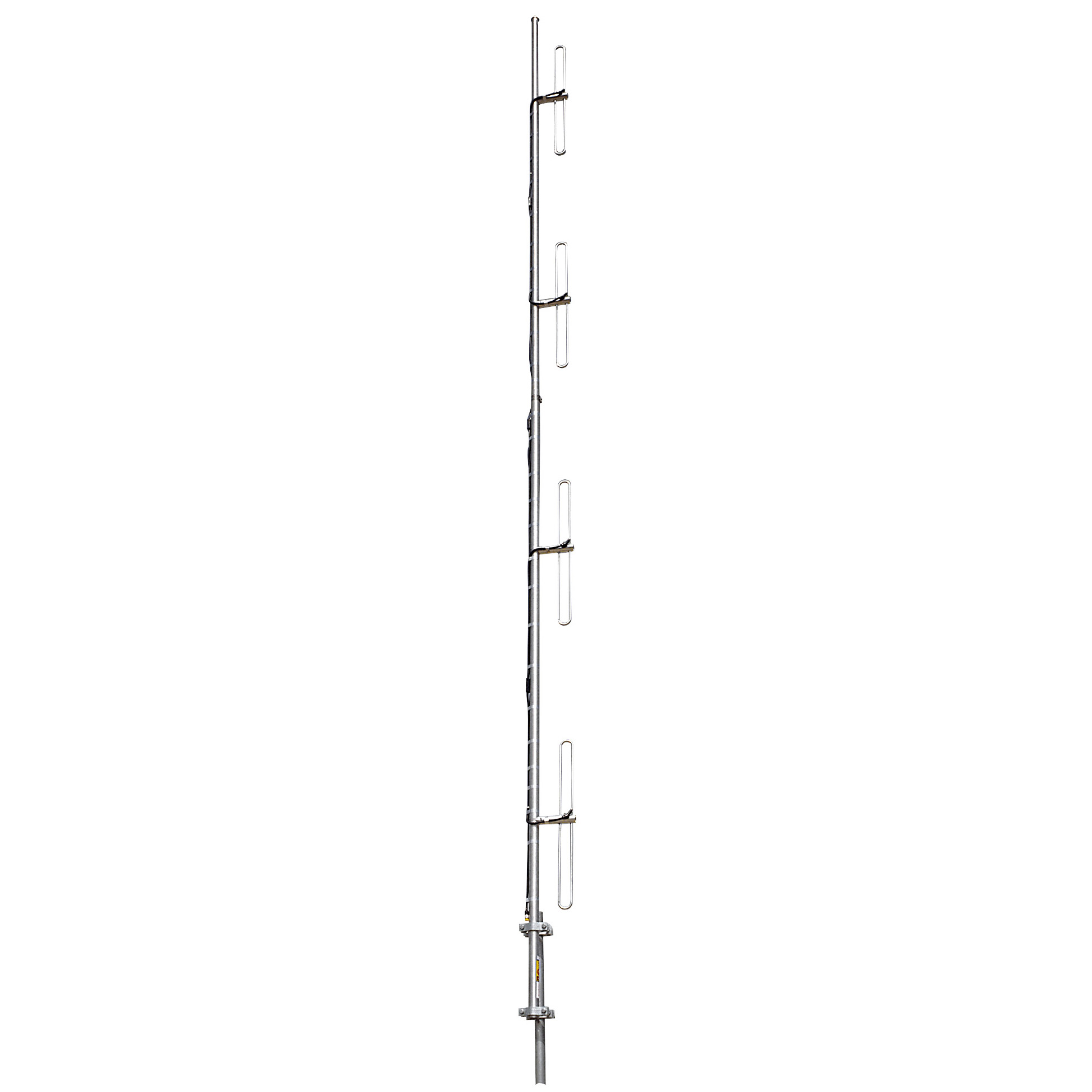

138-150 MHz omni, exposed dipole antenna. This adjustable field omni antenna has a maximum power input of 500 watts. A harness with N male connection is included along with the DB365-0S pipe mount kit for 1.25 - 3.5 inch OD round members. Maximum power input is 500 watts.

This four-bay exposed dipole VHF antenna can be arranged in an offset pattern producing a higher gain of 9 dB. Omni coverage and a gain of 6 dB can be achieved through a circular pattern. Commscope DB224 omni antenna meets RoHS 2002/95/EC.

Polarization Vertical

Maximum VSWR 1.5:1

RF Connectors N Male

Gain 6 dBd

Gain 8.1 dBi

Maximum Power 500 W

Item Weight 38 lb

Horizontal Beamwidth 360 deg

Specific Frequency 138-150 MHz

Antenna Pattern Adjustable

Item Length 255 in

Type of Hardware Included Pipe Mount (1.25-3.5 in)

Jumper Included Yes

Vertical Beamwidth 16 deg

Lightning Protection DC Ground

3 Years
