Laird TE Connectivity YS8063

TE Connectivity

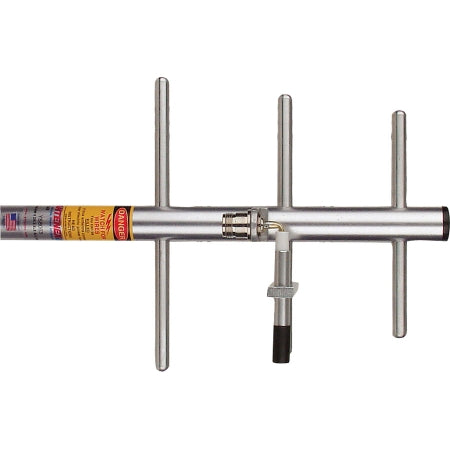

Laird YS8063 yagi antenna is part of TE Connectivity Silver Series VHF models. The Silver Series feature the same great optimized designs and plated brass connectors as the welded gold-anodized models. The YS8063 operates in the 806 - 896 MHz frequency range. The yagi is 3-elements with 6dBd gain and a maximum power input of 300 watts. The antenna is terminated with an N Female connector and includes U-bolts for mounting.

The broad bandwidth (806 - 896 MHz) of this 3-element antenna makes gain performance more consistent throughout the frequency range.

Specific Frequency 806-896 MHz

Gain 6 dBd

Gain 8.15 dBi

RF Connector N Female

Connector Placement Bottom

Item Length 16.75 in

Maximum VSWR 1.5:1

Polarization Linear

Item Weight 3 lb

Horizontal Beamwidth 72 deg

Maximum Rated Wind Velocity 100 mile/h

Type of Hardware Included U-Bolts

Jumper Included No

Vertical Beamwidth 57 deg

Lightning Protection DC Ground

Maximum Power 300 W

5 Year
