Manufacturer
Larsen
Product Description

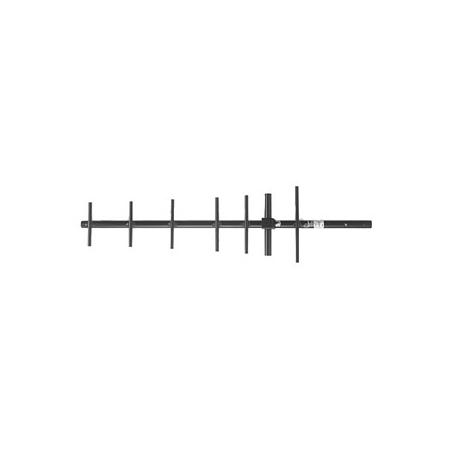

806-866 MHz welded yagi antenna. Black finish. 9dBd gain, 300 watts. Direct N female termination. Includes mounting hardware.
Specs
Specific Frequency 806-866 MHz
RF Connector N Female
Gain 9 dBd
Gain 11.2 dBi
Maximum Power 300 W
Connector Placement Center
Maximum VSWR 2.0:1
Maximum Rated Wind Velocity 100 mile/h
Lightning Protection DC Ground
Polarization Linear
Type of Hardware Included U-Bolts
Item Weight 1.3 lb
Item Width 31.25 in
Jumper Included No
Horizontal Beamwidth 45 deg
Vertical Beamwidth 45 deg
Warranty
2 Years
