PCTEL BMYD806K

PCTEL

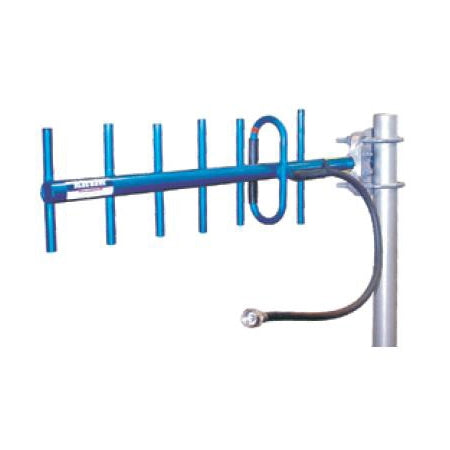

PCTEL BMYD806K series yagi antenna is designed to provide characteristics of a high gain, broadband, premium-quality antenna. The yagi antenna operates in the frequency range 806 - 896 MHz and has a gain of 10 dBd. This 7-element antenna is supplied with a 2 foot RG213 pigtail with an N Female connector. The antenna is anodized for corrosion resistance and has a maximum power input of 200 watts. Includes mounting hardware BWC1001.

PCTEL DMYD806K is heavy duty designed with harsh conditions in mind.

Specific Frequency 806-896 MHz

Maximum VSWR 1.7:1

Gain 10 dBd

Gain 12.1 dBi

Type of Jumper Included 2' RG213

RF Connector N Female

Maximum Rated Wind Velocity 125 mile/h

Jumper Included Yes

Polarization Linear

Type of Hardware Included BWC1001

Item Height 6.8 in

Item Length 24 in

Item Weight 2 lb

Vertical Beamwidth 46 deg

Horizontal Beamwidth 60 deg

Maximum Power 200 W

2 Years
