Description
Description
Manufacturer
Commscope
Product Description

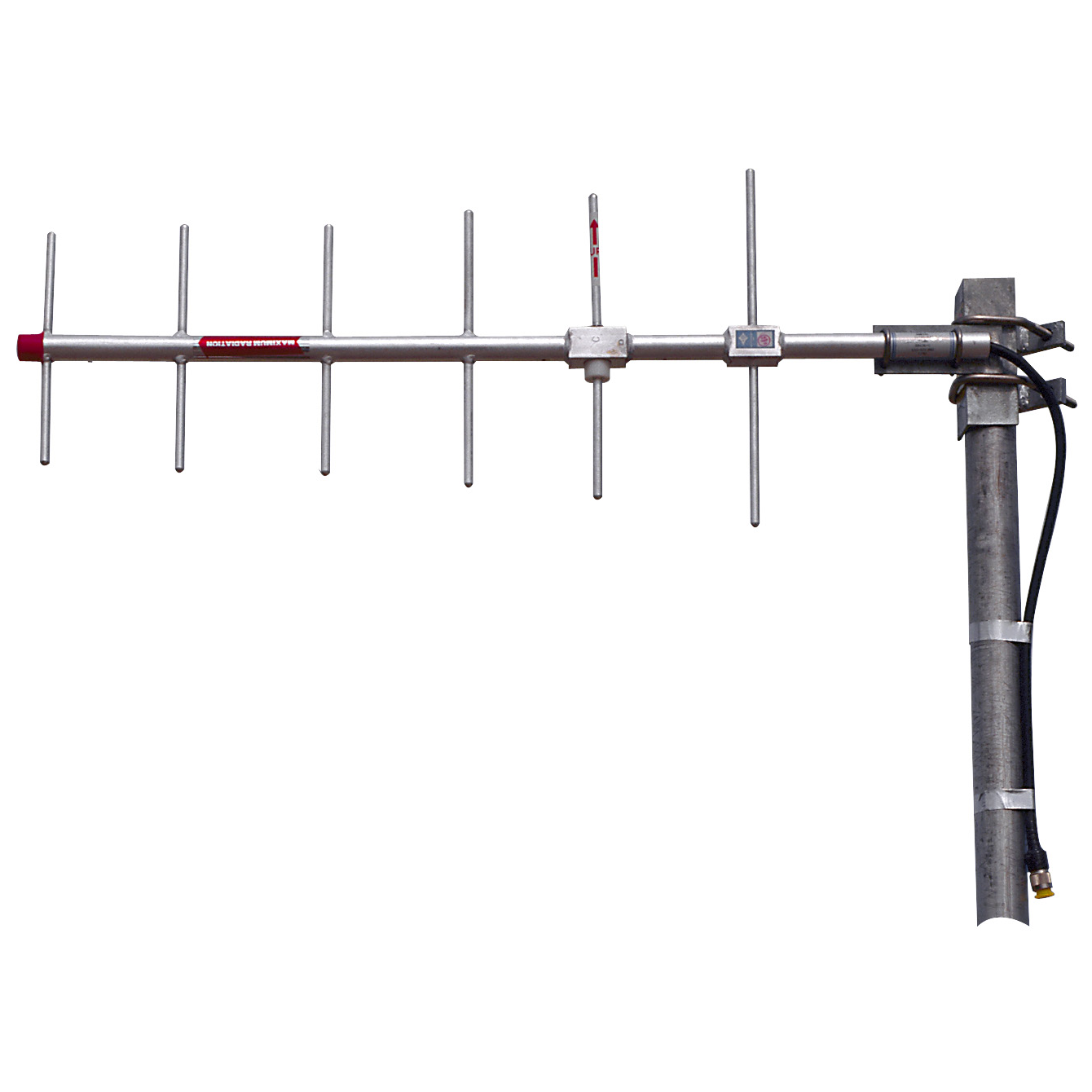

450-470 MHz, 6-element yagi. 10dB gain, 250 watt. Includes harness w/ N male term. and mounting hardware.
Specs
Specific Frequency 450-470 MHz
Gain 10 dBd
Gain 12.1 dBi
Vertical Beamwidth 44 deg
Horizontal Beamwidth 60 deg
RF Connector N Male
Item Width 14.5 in
Jumper Included Yes
Item Length 35 in
Item Weight 7 lb
Maximum VSWR 1.5:1
Maximum Power 250 W
Polarization Vertical
Lightning Protection DC Ground
Connector Placement Bottom
Maximum Rated Wind Velocity 125 mile/h
Type of Hardware Included V-Bolts (3 in. max)
Item Height 1 in
Warranty
3 Years
