EM Wave EM-MG11006-SP-195

EM Wave, Inc

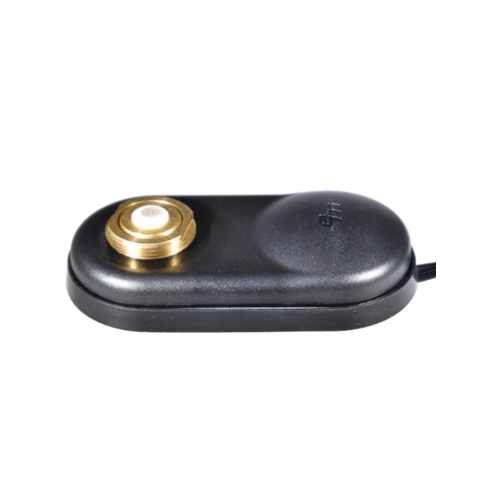

Combination NMO Antenna Mount with Built in GPS Antenna

• Low-Profile aesthetics for reduced visibility
• UV Stabilized, High Impact Xenoy™ housing
• Rugged aluminum die cast base for high strength mechanical mounting and reliability
• Silicone Rubber gasket and dual O-ring seals for waterproof, high pressure car wash (IP66) applications

Bulkhead, ¾ in. Thru-Hole, Mounting Depth: Maximum: 3/8" thick - Minimum: 1/32" thick. The base will mount to a bulkhead panel up to 3/8" (9.5mm) thick. If the current locking washer/nut combination is replaced with a low profile nut/washer combination, an additional 1/4" (6.4mm) can be achieved.

Choose Connectors Installed Above

2 Years
