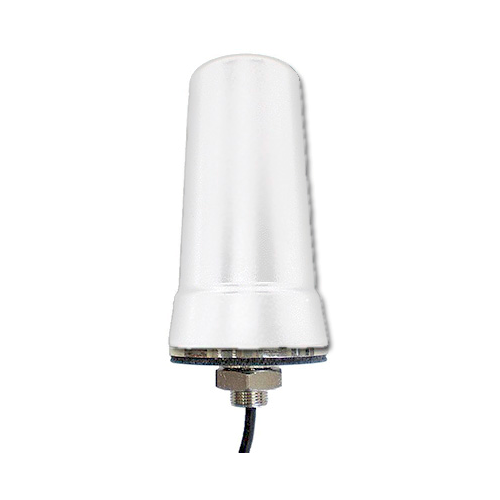

EM Wave EM-A20004-SP
Regular price
$4195
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Manufacturer
EM Wave, Inc
Product Description
multiband 698-960 & 1710-2700 MHz, 24" RG174/U LL cable, SMA Male Connector, White
Mount Type
3/8” Hole, Bulkhead
Warranty
2 Years
Features
- LTE/4G Performance
- Bulkhead Mount Applications
- Aesthetic/Tamper Resistant design
- Low-Profile to minimize visual impact
- UV Stabilized, High Impact ASA / Polycarbonate housing
- O-ring seal for IP67 Rated reliable waterproof construction and installation
Applications: ISM/SCADA/Utilities, Telemetry/Fleet Management, DAS, 4G LTE/LTE-IoT, Wi-Fi
Mechanical Specifications
Frequency Band
698-960/1710-2700 MHz
VSWR
<2.2:1 (698-710 MHz), <2.0:1 (710-960 and 1710-2700 MHz)
Impedance
50 Ω
Gain
2 dBi (698-960 and 1710-2200 MHz), 3.5 dBi (2200-2700 MHz)
Power Rating
10 W
Polarization
Vertical
E-Plane
50°, Nominal
H-Plane
Omnidirectional
Electrical Specifications
Height
3.0 in (76 mm)
Width
1.7 in (43 mm)
Connector
SMA Plug
Cable Type
Low Loss 100
Cable Length
24 in (610 mm)
Radiator
PCB
Radome Material
ASA /Polycarbonate
Mounting
Bulkhead Mount
Mounting Hole Diameter
3/8 in (10 mm)
Operating Temperature
-40° to 85° C
Corrosion
Salt Fog
Ingress Protection
IP67
