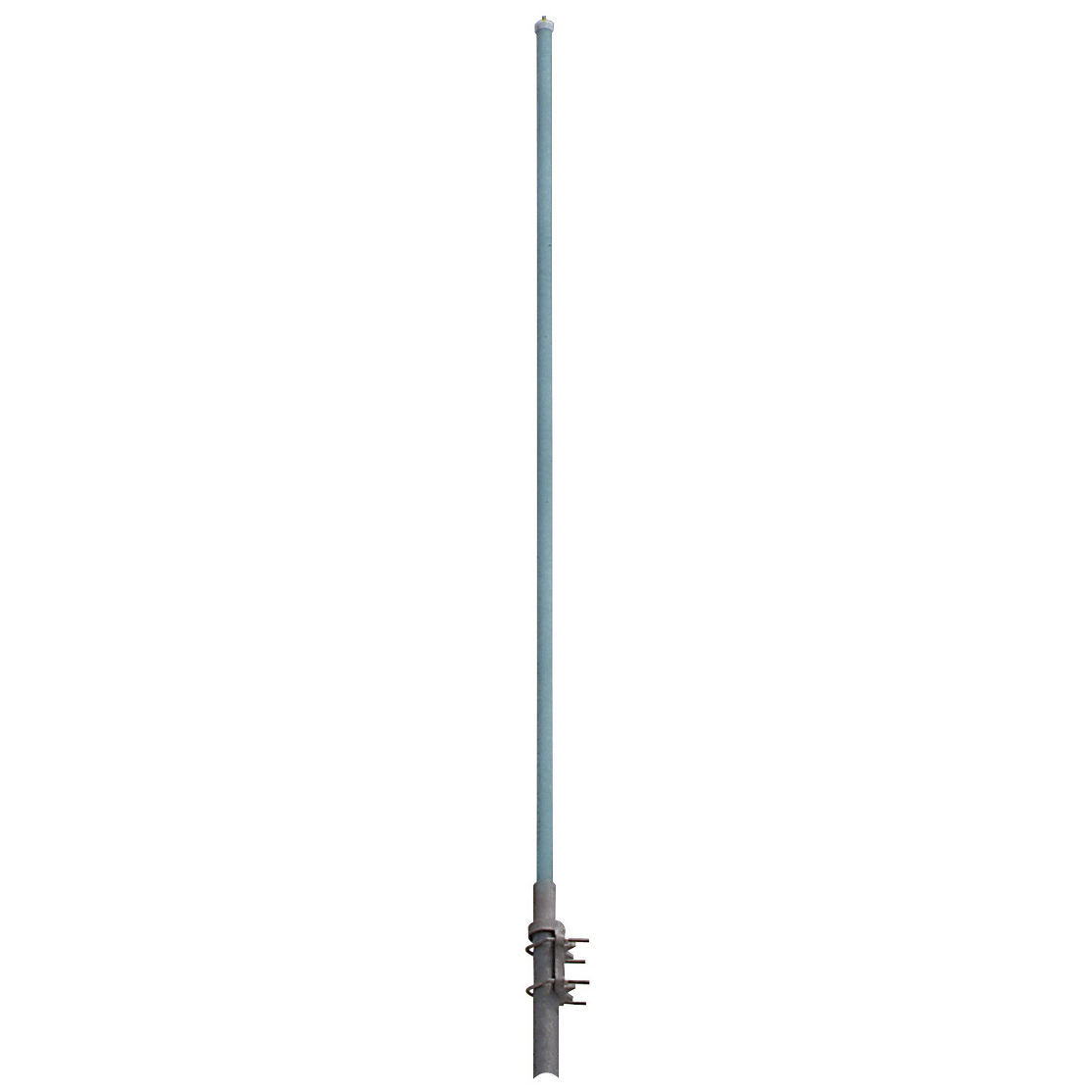

Commscope DB589-Y

Commscope

890-960 MHz 9dB Fiberglass Omnidirectional Antenna. collinear omni antenna operates in the 890 - 960 MHz frequency range. This light weight fiberglass low profile omni antenna is ideal for low to moderate gain applications. The DB589-Y provides 9 dBd gain, has a maximum power input of 300 watts and is terminated with an N Female connector at the bottom of the antenna. V-bolts are included for mounting. This omnidirectional antenna meets RoHS 2002/95/EC

Specific Frequency 890-960 MHz

RF Connector N Female

Maximum Rated Wind Velocity 125 mile/h

Fixed Electrical Downtilt 0 deg

Item Weight 11.5 lb

Gain 9 dBd

Gain 11.15 dBi

Polarization Vertical

Item Length 110 in

Lightning Protection DC Ground

Electrical Downtilt Fixed

Connector Placement Bottom

Maximum VSWR 1.5:1

Maximum Power 400 Watts

Type of Hardware Included 2 V-Bolts

3 Years
