CommScope DB499-K

Commscope

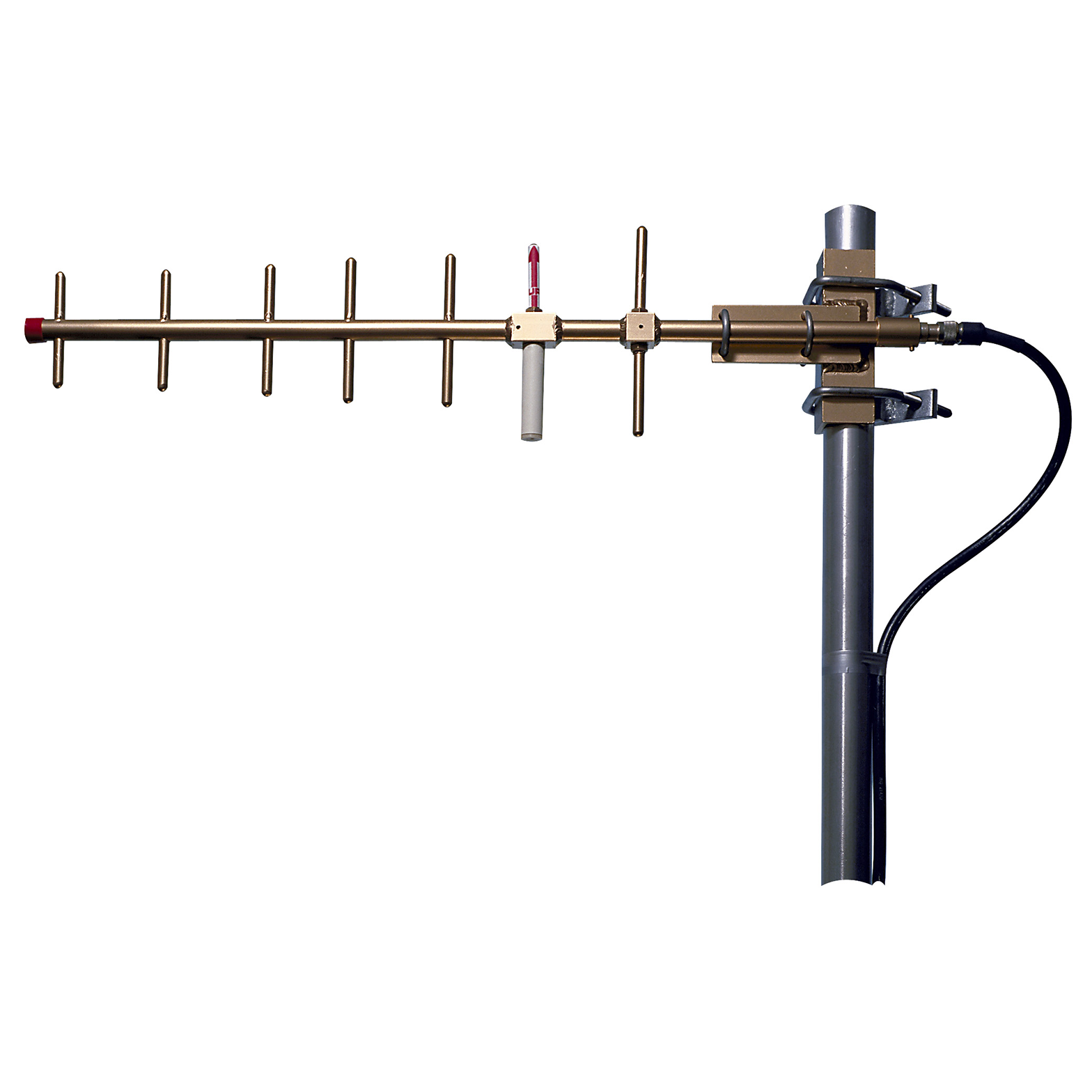

DB499-K is a heavy duty yagi antenna operating in the 890 - 960 MHz frequency range. This 7-element, 10 dBd gain yagi antenna is designed for challenging applications. The driven element encased in a radome to prevent corrosion and minimize the effects of severe icing conditions.

This yagi has a power input of 150 watts, is terminated with a direct N female connector and includes 2 V-bolts for mounting. Commscope's rugged, heavy-duty yagi antenna meets RoHS 2002/95/EC.

Specific Frequency 890-960 MHz

Gain 10 dBd

Gain 12.1 dBi

Vertical Beamwidth 30 deg

Horizontal Beamwidth 60 deg

Item Length 30 in

Item Width 5.4 in

Maximum VSWR 1.5:1

Polarization Vertical

Type of Hardware Included V-Bolts (3 in. max)

Jumper Included No

RF Connectors N Female

Connector Placement Bottom

Item Height 1 in

Lightning Protection DC Ground

Item Weight 5 lb

Maximum Power 150 W

Maximum Rated Wind Velocity 125 mile/h

3 Years
