Description
Description
Manufacturer
TE Connectivity
Product Description

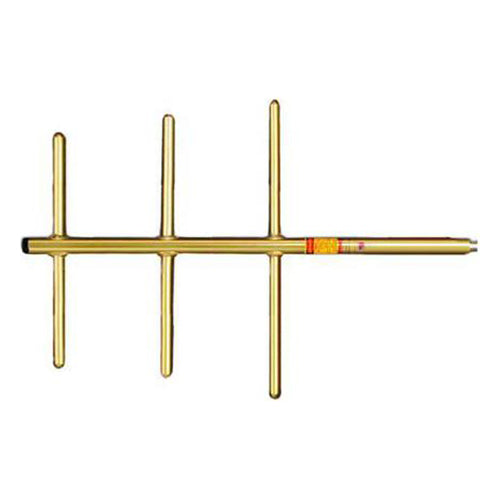

136-150 7.1dB VHF Yagi
Product Narrative
136–150 MHz three-element directional antenna. 7.1 dB gain, 500 W. Direct N Female termination. Mounting hardware includes U-bolts.
Specific Freq. (MHz)
136–150 MHz
Gain (dB)
Technical Specs
Horizontal Beamwidth 72 deg
Vertical Beamwidth 57 deg
Lightning Protection DC Ground
Specific Frequency 136-150 MHz
Maximum Power 500 W
Item Length 41.5 in
Maximum VSWR 1.5:1
RF Connectors N Female
Maximum Rated Wind Velocity 100mph
Item Weight 3 lb
Type of Hardware Included U-bolts
Horizontal Beamwidth 72 deg
Vertical Beamwidth 57 deg
Lightning Protection DC Ground
Specific Frequency 136-150 MHz
Maximum Power 500 W
Item Length 41.5 in
Maximum VSWR 1.5:1
RF Connectors N Female
Maximum Rated Wind Velocity 100mph
Item Weight 3 lb
Type of Hardware Included U-bolts
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
14 MHz
Lightning Prot.
DC Ground
Direct Termination
N Female
Weight
5 Lbs
Warranty
5 Year
