Manufacturer
RADIO FREQUENCY SYSTEMS
Product Description

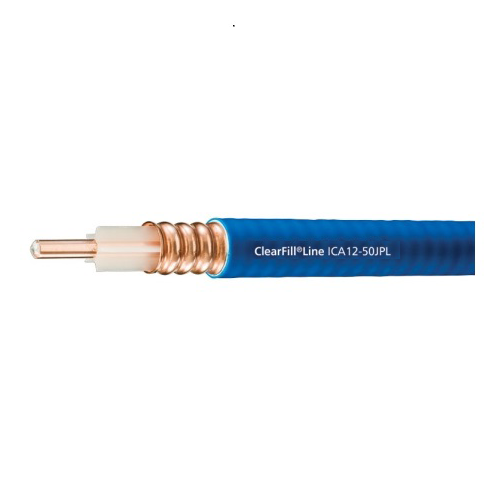

1/2 inch Plenum Rated Coaxial Cable
Impedance (Ohms)
50 Ohms
Maximum Frequency
8.8 Ghz
VOP.
91%
Peak Power (W)
13.4 kW
Outer Conductor
Copper
Inner Conductor
Copper-Clad Aluminum
Losses Shown are based on 100 Foot Length
Atten @ 30 MHz
0.358 dB
Atten @ 50 MHz
0.465 dB
Atten @ 150 MHz
0.822 dB
Atten @ 450 MHz
1.48 dB
Atten @ 824 MHz
2.06 dB
Atten @ 894 MHz
2.15 dB
Atten @ 960 MHz
2.24 dB
Atten @ 1700 MHz
3.09 db
Atten @ 1920 MHz
3.31 db
Atten @ 2000 MHz
3.45 db
Avg Power @ 30 MHz
13.4 kW
Avg Power @ 50 MHz
10.3 kW
Avg Power @ 450 MHz
3.25 kW
Avg Power @ 800 MHz
2.37 kW
Avg Power @ 894 MHz
2.23 kW
Avg Power @ 960 MHz
2.15 kW
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
10 Years
