Description
Description
Manufacturer
TE Connectivity
Model #
TRA821/18503P
Product Description

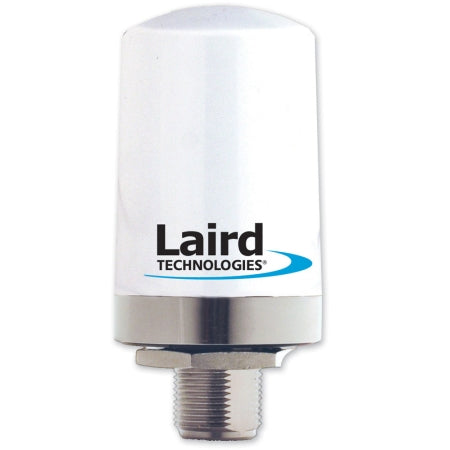

Cell/ PCS Phantom Antenna, White
Product Narrative
The Phantom dual band cellular/PCS low visibility antenna is a true field diversity design antenna with a wide bandwidth and low radiation pattern for superior results. Exterior is made of the highest grade ABS plastic suitable for inside or outside use. 2' x 2' metallic ground plane is required. Permanent screw type mount with N female termination. Available in black or white.
Frequency
821-896/1850-1970
Gain (dBd) Cell/PCS
3/3 dB-MEG
Maximum Power (Watts)
100
Whip Length (In.)
1.438" dia. x 2.3" H
Whip Material
ABS plastic
Color
Black
Mount Type
Permanent screw base mount
Connector
N Female
Warranty
5 Year
